Grade 316 Stainless Steel Bolt Anchor Shackle

Name: Grade 316 Stainless Steel Bolt Anchor Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-aee0e9
Price: 29.99 USD
Availability: OutOfStock

SKU:STA-aee0e9

Premium Grade 316 Stainless Steel Bolt Anchor Shackle, ideal for marine use. WLL 1000 lb, ASME B30.26-2010 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

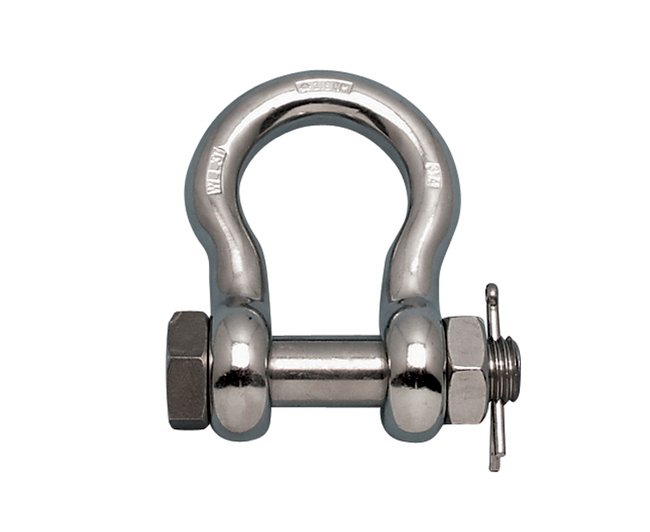

The Grade 316 Stainless Steel Bolt Anchor Shackle is a top-tier fastening solution designed for marine environments. Crafted from 316-NM stainless steel, this anchor shackle boasts an oversized bolt for enhanced durability and safety. With a Working Load Limit (WLL) of 1000 lb, it securely connects anchors to chains or swivels, excelling in saltwater applications. Compliant with ASME B30.26-2010, Fed. Spec. RR-C-271, MIL-DTL-32655, and more, this Suncor exclusive product ensures reliability and performance in demanding conditions.

Product Specifications

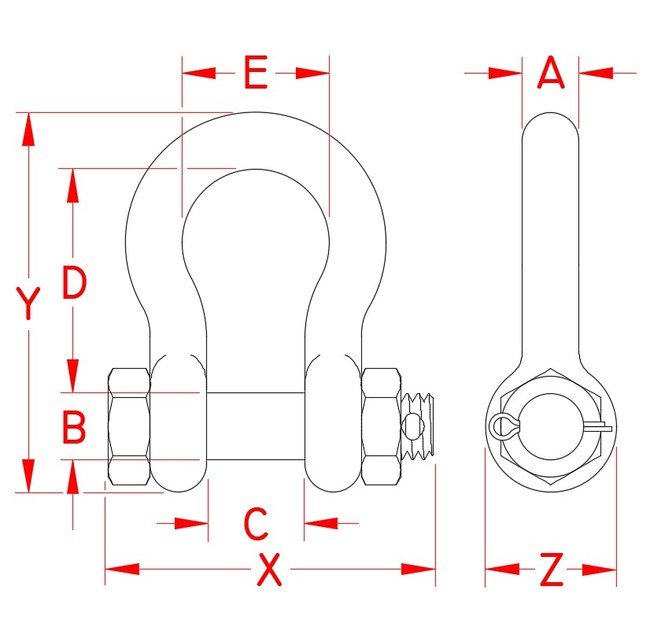

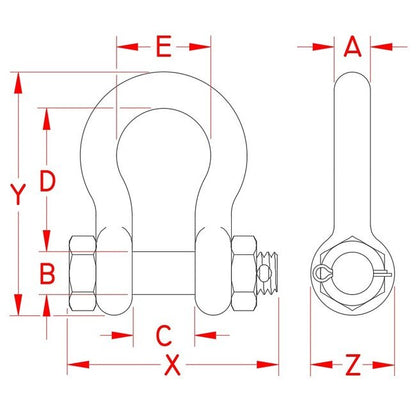

Specifications Dimension A

1/4 in

Specifications Dimension B

0.31 in

Specifications Dimension C

0.47 in

Specifications Dimension D

1.11 in

Specifications Dimension E

0.75 in

Specifications Dimension X

1.66 in

Specifications Dimension Y

1.79 in

Specifications Dimension Z

0.61 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

0.116 lb

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030

Grade 316 Stainless Steel Bolt Anchor Shackle
