Grade 316 Stainless Steel Bow Shackle with Captive Pin

Grade 316 Stainless Steel Bow Shackle with Captive Pin

SKU:STA-f24052

Premium Grade 316 Stainless Steel Bow Shackle with Captive Pin for marine applications. Corrosion-resistant, self-locking design.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Grade 316 Stainless Steel Bow Shackle with Captive Pin

Grade 316 Stainless Steel Bow Shackle with Captive Pin

$24.99

Quantity: 1

Claim Your Seller Account

Grade 316 Stainless Steel Bow Shackle with Captive Pin

Grade 316 Stainless Steel Bow Shackle with Captive Pin

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

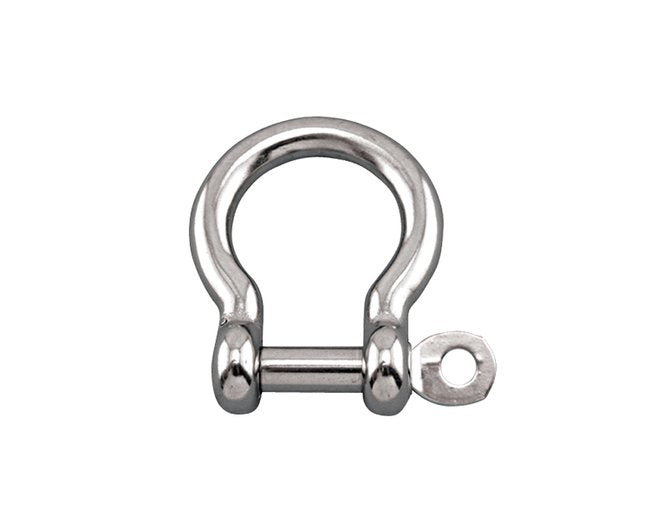

The Grade 316 Stainless Steel Bow Shackle with Captive Pin is a versatile and durable solution for marine applications. Featuring a self-locking captive pin designed to prevent accidental dislodging, this precision cast shackle ensures maximum corrosion resistance and reliability. With a Working Load Limit (WLL) of 1000 lb and available in various sizes, this Suncor product meets stringent industry standards and is ideal for both consumer and institutional buyers seeking high-quality stainless steel shackles.

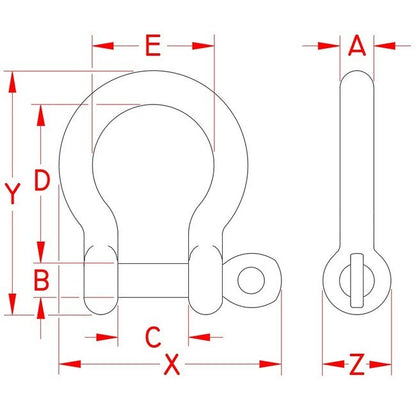

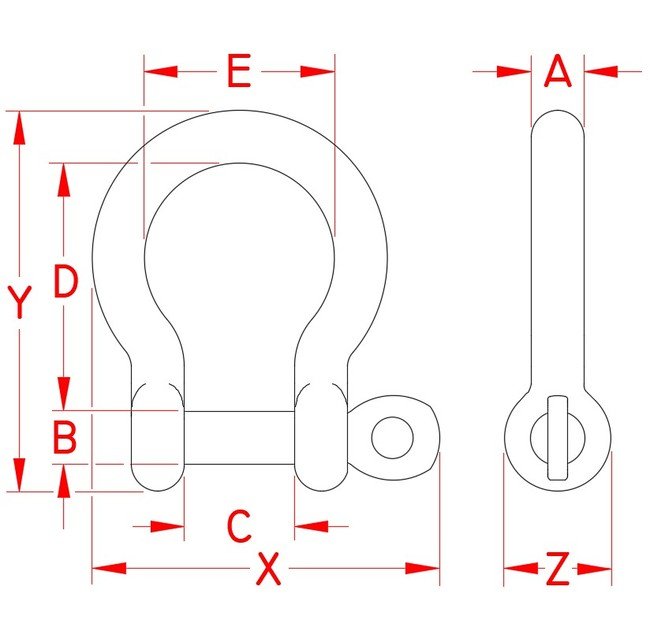

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
0.31 in
Specifications Dimension C
0.67 in
Specifications Dimension D
1.46 in
Specifications Dimension E
1.05 in
Specifications Dimension X
1.80 in
Specifications Dimension Y
2.26 in
Specifications Dimension Z
0.65 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.16 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
