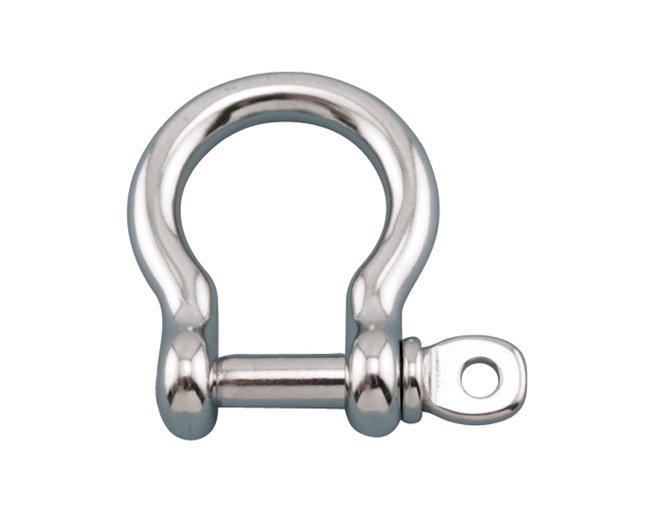

Grade 316 Stainless Steel Bow Shackle with Screw Pin
Grade 316 Stainless Steel Bow Shackle with Screw Pin
SKU:STA-6d3506
Durable Grade 316 Stainless Steel Bow Shackle perfect for marine and industrial use. Sizes range from 5/32" to 1-1/4".
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Bow Shackle with Screw Pin
$29.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Bow Shackle with Screw Pin
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Grade 316 Stainless Steel Bow Shackle with Screw Pin offers superior corrosion resistance and durability, perfect for marine and industrial usage. Available in sizes from 5/32" to 1-1/4", this precision cast shackle from Suncor can handle a Working Load Limit (WLL) of 1000 lb. Made to precision standards, this shackle meets industry-specific certifications and is TAA compliant, making it a trusted choice for government and institutional applications.

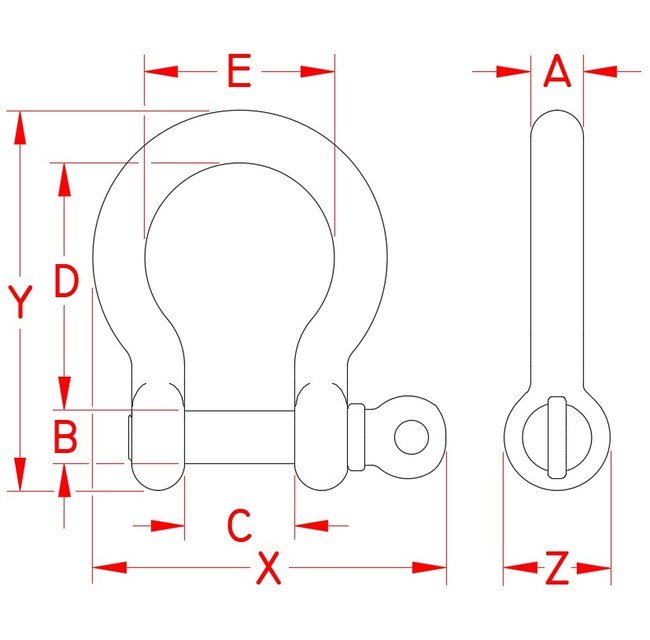

Product Specifications
Specifications Dimension A
5/16 in
Specifications Dimension B
0.31 in
Specifications Dimension C
0.67 in
Specifications Dimension D
1.46 in
Specifications Dimension E
1.05 in
Specifications Dimension X
1.95 in
Specifications Dimension Y
2.26 in
Specifications Dimension Z
0.65 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.166 lb
Specifications Working Load Limit Wll
1000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
