Grade 316 Stainless Steel Bow Shackle with Screw Pin

Name: Grade 316 Stainless Steel Bow Shackle with Screw Pin
Brand: Suncor Stainless, Inc.
SKU: STA-ac877e
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-ac877e

Grade 316 Stainless Steel Bow Shackle with Screw Pin for marine and industrial applications. Features precision cast, high WLL, and corrosion resistance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

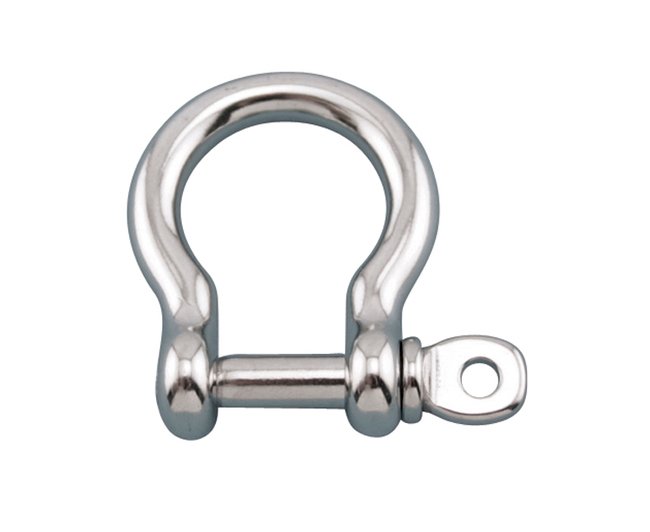

The Grade 316 Stainless Steel Bow Shackle with Screw Pin offers superior corrosion resistance and durability, making it perfect for marine and industrial applications. Available in sizes ranging from 5/32" to 1-1/4", this precision cast shackle from Suncor can handle a working load limit of 9,000 lb. With precise dimensions and a weight of 9.13 lb, this shackle ensures reliability and safety in various heavy-duty settings.

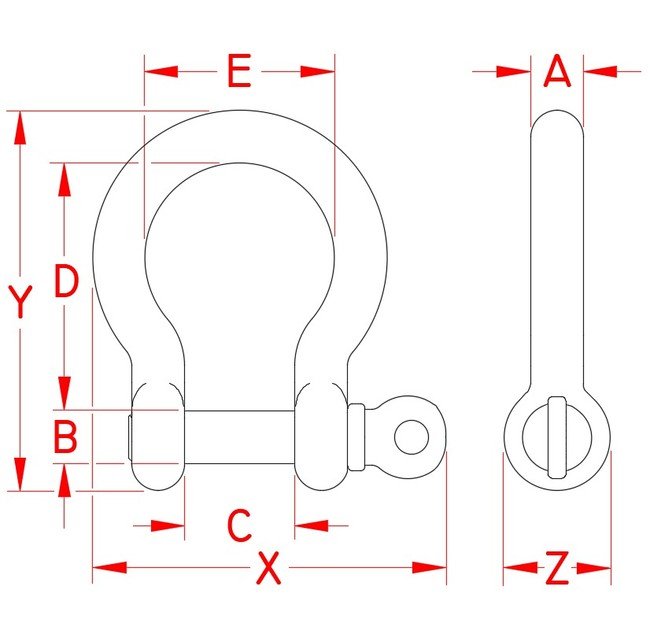

Product Specifications

Specifications Dimension A

1-1/4 in

Specifications Dimension B

1.24 in

Specifications Dimension C

2.50 in

Specifications Dimension D

5.44 in

Specifications Dimension E

4.25 in

Specifications Dimension X

7.09 in

Specifications Dimension Y

8.51 in

Specifications Dimension Z

2.46 in

Specifications Fabrication Type

Precision Cast

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

9.13 lb

Specifications Working Load Limit Wll

9,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
