Grade 316 Stainless Steel Bow Shackle with Screw Pin
Grade 316 Stainless Steel Bow Shackle with Screw Pin
SKU:STA-c7dde6
High-quality Grade 316 Stainless Steel Bow Shackle with Screw Pin for marine and industrial use. Various sizes available.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Bow Shackle with Screw Pin
$14.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Bow Shackle with Screw Pin
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

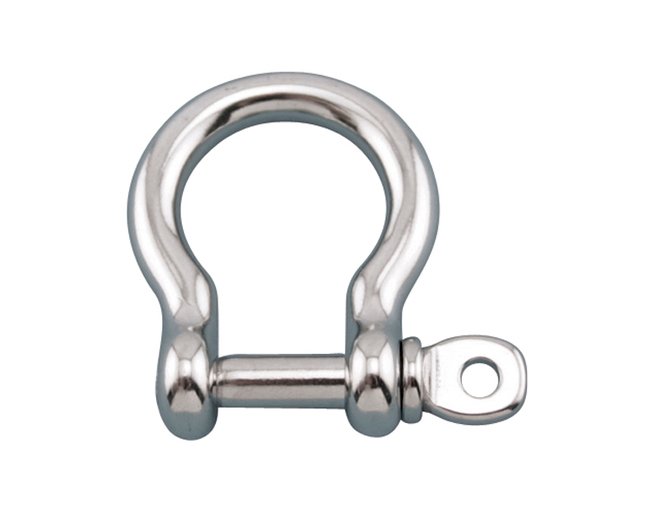

The Grade 316 Stainless Steel Bow Shackle with Screw Pin offers exceptional corrosion resistance and durability, making it perfect for marine and industrial applications. Available in various sizes from 5/32" to 1-1/4", this precision cast shackle from Suncor can withstand a working load limit of 1200 lbs. Its robust construction and precise dimensions ensure reliable performance in critical lifting operations.

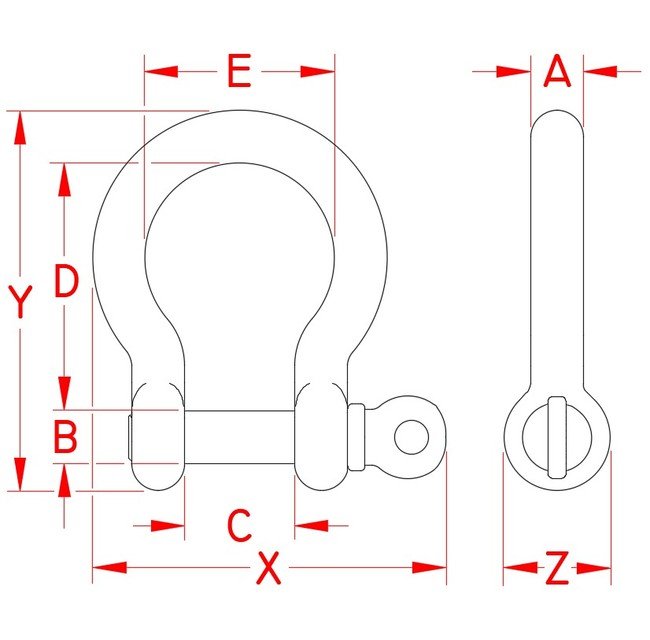

Product Specifications
Specifications Dimension A
3/8 in
Specifications Dimension B
0.39 in
Specifications Dimension C
0.79 in
Specifications Dimension D
1.77 in
Specifications Dimension E
1-1/4 in
Specifications Dimension X
2.32 in
Specifications Dimension Y
2.76 in
Specifications Dimension Z
0.80 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.31 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
