Grade 316 Stainless Steel Forged Eye and Eye Turnbuckle
Grade 316 Stainless Steel Forged Eye and Eye Turnbuckle
SKU:STA-a2452c
Premium Grade 316 Stainless Steel Turnbuckle for marine and industrial use, with ASTM F1145-05 Type 1, Class D compliance
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

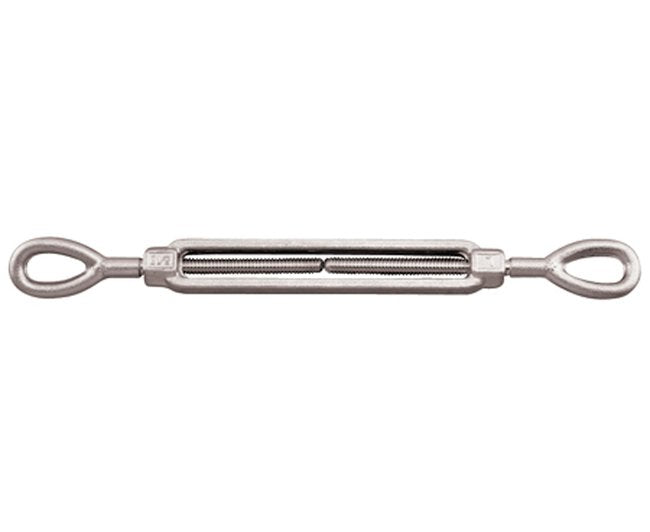

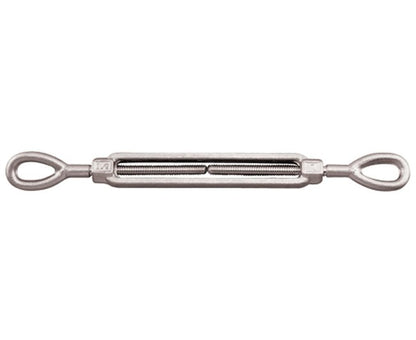

The Grade 316 Stainless Steel Forged Eye and Eye Turnbuckle with an open body is designed for maximum corrosion resistance. Available in various sizes, this turnbuckle is ideal for marine and industrial applications. It meets ASTM specification F1145-05 (2011) Type 1, Class D and features a Working Load Limit (WLL) of 2200 lb. Made from 316-NM Stainless Steel and drop forged, this turnbuckle is MIL-SPEC compliant, ensuring durability and reliability in critical applications.

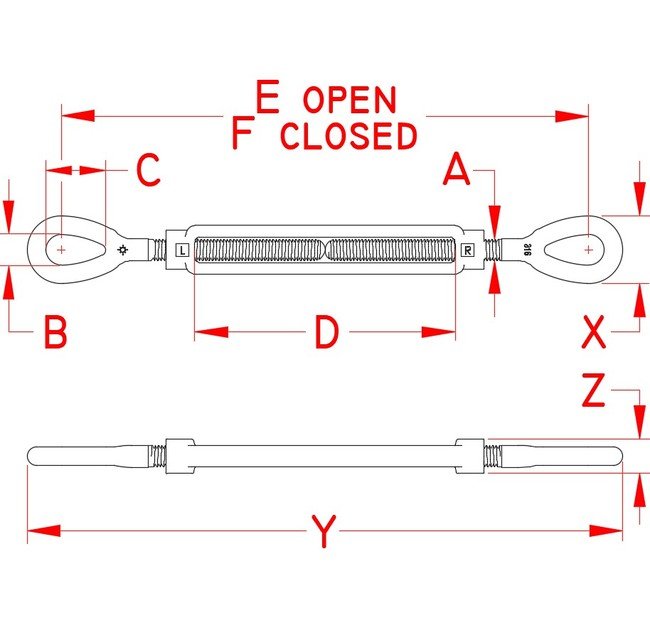

Product Specifications
Specifications Dimension A
1/2 in
Specifications Dimension B
0.75 in
Specifications Dimension C
1.35 in
Specifications Dimension D
6.00 in
Specifications Dimension E
17.40 in
Specifications Dimension F
13.00 in
Specifications Dimension X
1.56 in
Specifications Dimension Y
14.00 in
Specifications Dimension Z
0.82 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
1.44 lb
Specifications Working Load Limit Wll
2200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
