Grade 316 Stainless Steel Forged Eye and Eye Turnbuckle
Grade 316 Stainless Steel Forged Eye and Eye Turnbuckle
SKU:STA-727f8b
Durable Grade 316 Stainless Steel Turnbuckle for marine and industrial use. Meets ASTM and ASME standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Forged Eye and Eye Turnbuckle
$49.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Forged Eye and Eye Turnbuckle
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

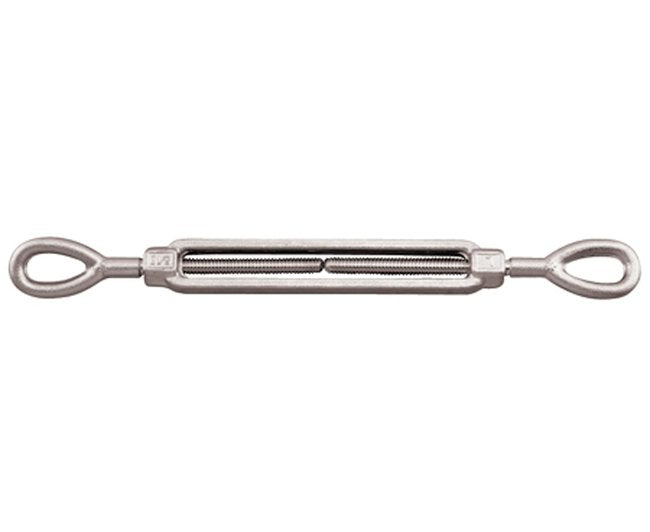

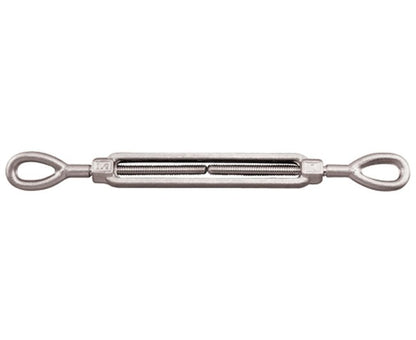

The Grade 316 Stainless Steel Forged Eye and Eye Turnbuckle is a durable and corrosion-resistant solution for marine and industrial applications. Made from drop-forged 316-NM stainless steel, this turnbuckle offers a Working Load Limit (WLL) of 3500 lb. It meets ASTM specification F1145-05 (2011) Type 1, Class D, ASME B30.26-2010 Section 26-2.0, and MIL-DTL-32655 standards, ensuring exceptional quality and compliance for government and institutional buyers.
Product Specifications

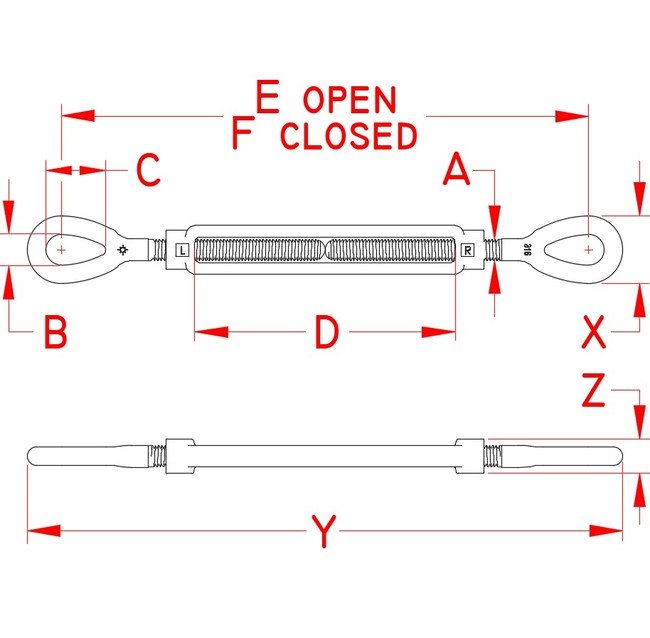

Specifications Dimension A
5/8 in
Specifications Dimension B
0.87 in
Specifications Dimension C
1.69 in
Specifications Dimension D
6.00 in
Specifications Dimension E
19.50 in
Specifications Dimension F
14.50 in
Specifications Dimension X
1.88 in
Specifications Dimension Y
16.00 in
Specifications Dimension Z
1.00 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
2.37 lb
Specifications Working Load Limit Wll
3500 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
