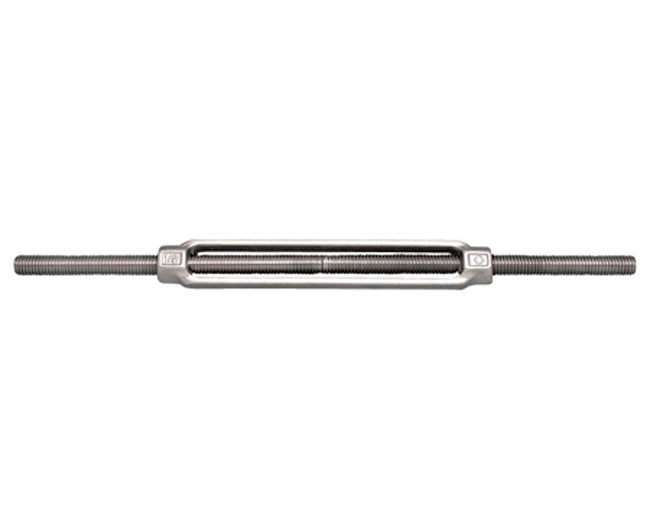

Grade 316 Stainless Steel Forged Full Thread Turnbuckle

Name: Grade 316 Stainless Steel Forged Full Thread Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-5e79dd
Price: 39.99 USD
Availability: OutOfStock

SKU:STA-5e79dd

Durable Grade 316 Stainless Steel Turnbuckle for marine and industrial applications, ASTM F1145-05 compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your projects with the Grade 316 Stainless Steel Forged Full Thread Turnbuckle. Designed with precision, these turnbuckles boast a durable and corrosion-resistant construction, ideal for marine and industrial applications. Meeting ASTM specification F1145-05 (2011) Type 1, these turnbuckles ensure reliability and safety in every use.

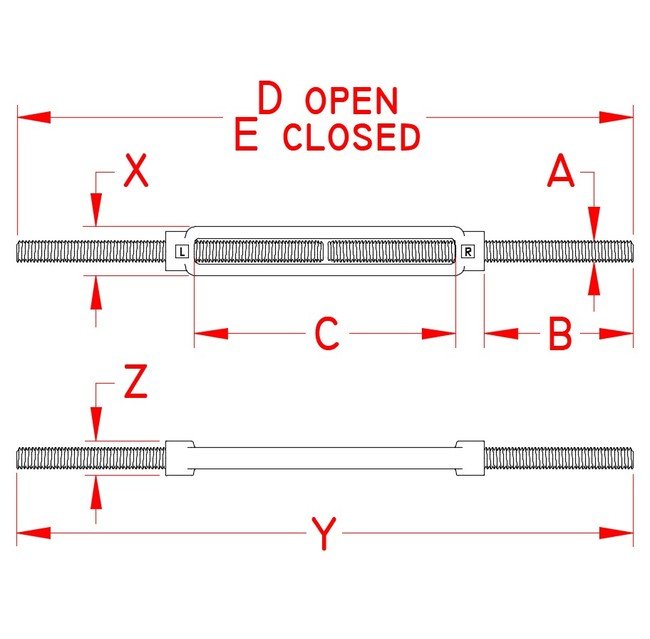

Product Specifications

Specifications Dimension A

1/2 in

Specifications Dimension B

3.00 in

Specifications Dimension C

6.00 in

Specifications Dimension D

20.00 in

Specifications Dimension E

14.00 in

Specifications Dimension X

1.15 in

Specifications Dimension Y

14.00 in

Specifications Dimension Z

0.78 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Specification

ATSM F1145-05 (2011) Type 1 | Class D

Specifications Suncor Exclusive

Yes

Specifications Weight

1.17 lb

Specifications Working Load Limit Wll

2200 lb

CAGE

1CXX6

NAICS

332510

PSC

4030

Grade 316 Stainless Steel Forged Full Thread Turnbuckle
