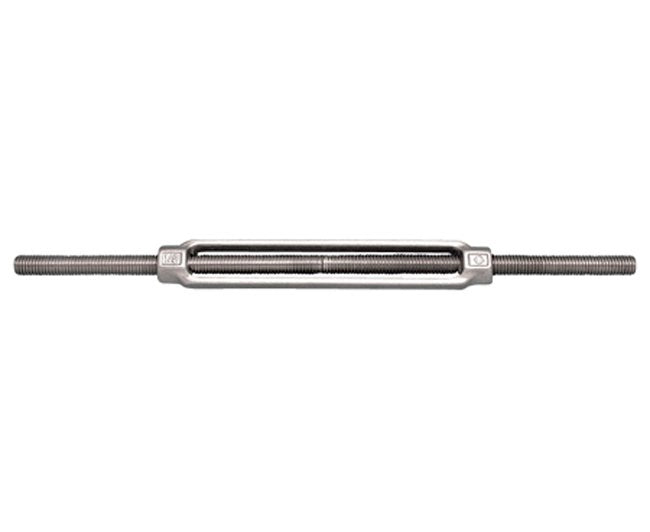

Grade 316 Stainless Steel Forged Full Thread Turnbuckle

Name: Grade 316 Stainless Steel Forged Full Thread Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-18bf70
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-18bf70

Premium grade 316 stainless steel turnbuckle for marine and industrial use. Meets ASTM F1145-05 (2011) Type 1 standards. Working Load Limit: 3500 lb.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your marine and industrial projects with our Forged Full Thread Turnbuckle. Made from grade 316 stainless steel, this turnbuckle offers exceptional durability and corrosion resistance. Ranging from 1/4" to 1" in size, it meets ASTM specification F1145-05 (2011) Type 1 standards, ensuring reliable performance. Ideal for heavy-duty applications, it features a Working Load Limit (WLL) of 3500 lb and precise dimensional specifications.

Product Specifications

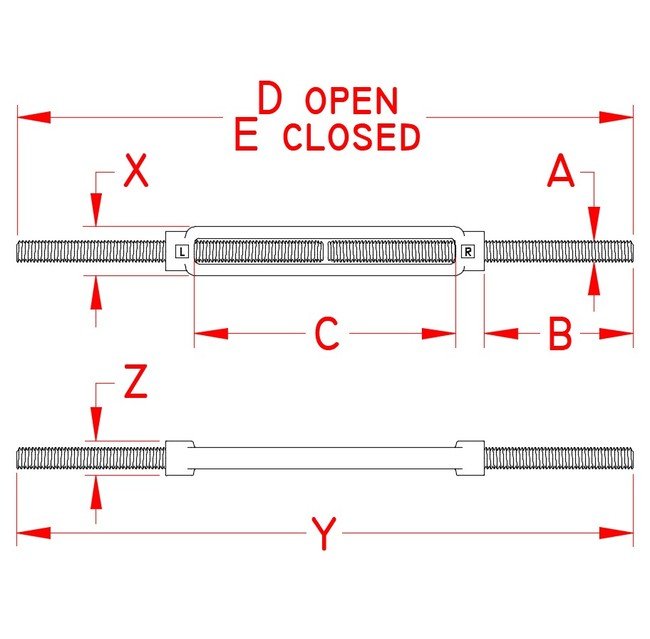

Specifications Dimension A

5/8 in

Specifications Dimension B

3.25 in

Specifications Dimension C

6.00 in

Specifications Dimension D

21.00 in

Specifications Dimension E

15.00 in

Specifications Dimension X

1.42 in

Specifications Dimension Y

15.00 in

Specifications Dimension Z

1.04 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Specification

ATSM F1145-05 (2011) Type 1 | Class D

Specifications Suncor Exclusive

Yes

Specifications Weight

2.03 lb

Specifications Working Load Limit Wll

3500 lb

CAGE

1CXX6

NAICS

332510

PSC

4030

Grade 316 Stainless Steel Forged Full Thread Turnbuckle
