Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
SKU:STA-5e2cb5
Durable, Grade 316 Stainless Steel Turnbuckle for marine and industrial use. Meets ASTM F1145-05 standards. WLL: 8,000 lb.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Upgrade your marine and industrial projects with our Forged Jaw and Eye Turnbuckle. Made from durable grade 316 stainless steel, this turnbuckle offers maximum corrosion resistance. With sizes from 1/4" to 1-1/4", it meets ASTM specification F1145-05 (2011) Type 1, Class H standards for superior performance. Ideal for heavy-duty applications, it boasts a Working Load Limit (WLL) of 8,000 lb. Suncor exclusive.
Product Specifications

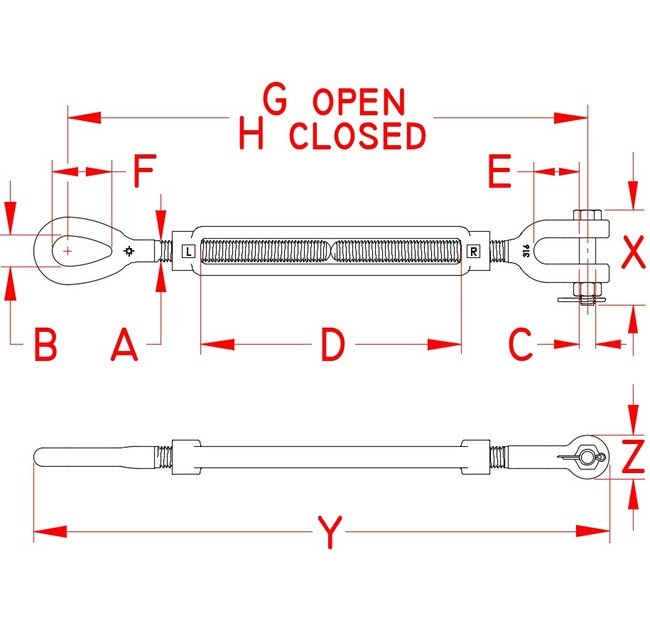

Specifications Dimension A
1 in
Specifications Dimension B
1.38 in
Specifications Dimension C
0.88 in
Specifications Dimension D
12.00 in
Specifications Dimension E
2.21 in
Specifications Dimension F
3.06 in
Specifications Dimension G
35.50 in
Specifications Dimension H
25.00 in
Specifications Dimension X
4.43 in
Specifications Dimension Y
27.50 in
Specifications Dimension Z
2.06 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
12.63 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
