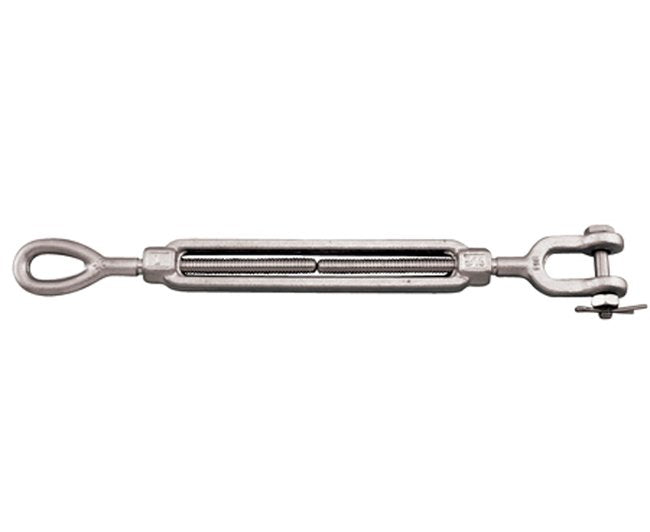

Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
SKU:STA-9f7fe2
Durable Grade 316 Stainless Steel Turnbuckle for marine and industrial use.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
$45.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle features an open body design, ideal for marine and industrial applications. Made from drop forged 316-NM stainless steel, this turnbuckle ensures maximum corrosion resistance and durability. With a Working Load Limit (WLL) of 3500 lb and compliance with ASTM F1145-05 (2011) Type 1, Class H, this turnbuckle meets stringent industry standards for safety and reliability.

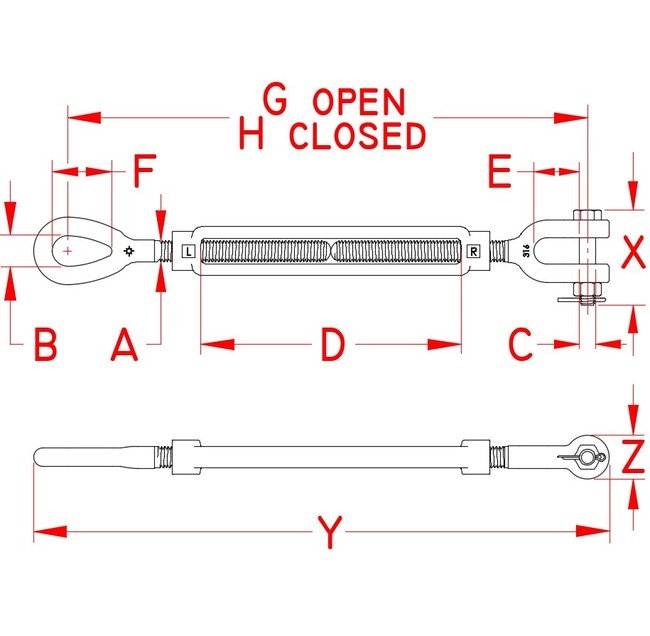

Product Specifications
Specifications Dimension A
5/8 in
Specifications Dimension B
0.87 in
Specifications Dimension C
0.50 in
Specifications Dimension D
6.00 in
Specifications Dimension E
1.37 in
Specifications Dimension F
1.73 in
Specifications Dimension G
20.25 in
Specifications Dimension H
14.00 in
Specifications Dimension X
2.86 in
Specifications Dimension Y
15.50 in
Specifications Dimension Z
1.34 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
2.62 lb
Specifications Working Load Limit Wll
3500 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
