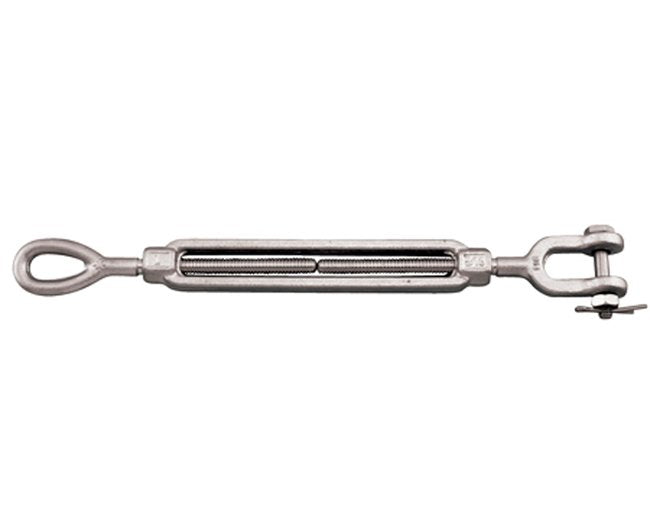

Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
SKU:STA-0d276e
Durable Grade 316 Stainless Steel Turnbuckle meeting ASTM specs for marine and industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
$29.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your marine and industrial projects with our Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle. Crafted for durability and corrosion resistance, this turnbuckle meets ASTM F1145-05 (2011) Type 1, Class H specifications. Available in sizes from 1/4" to 1-1/4" with a Working Load Limit of 500 lb, it is drop forged, load rated, and complies with ASME B30.26-2010 Section 26-2.0 standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

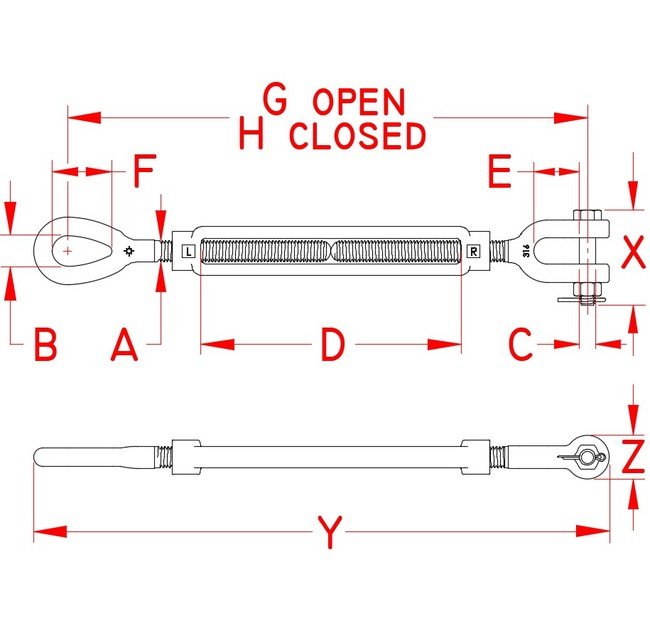

Specifications Dimension A
1/4 in
Specifications Dimension B
0.33 in
Specifications Dimension C
0.25 in
Specifications Dimension D
4.00 in
Specifications Dimension E
0.64 in
Specifications Dimension F
0.75 in
Specifications Dimension G
11.10 in
Specifications Dimension H
7.88 in
Specifications Dimension X
1.57 in
Specifications Dimension Y
8.42 in
Specifications Dimension Z
0.51 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
0.34 lb
Specifications Working Load Limit Wll
500 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
