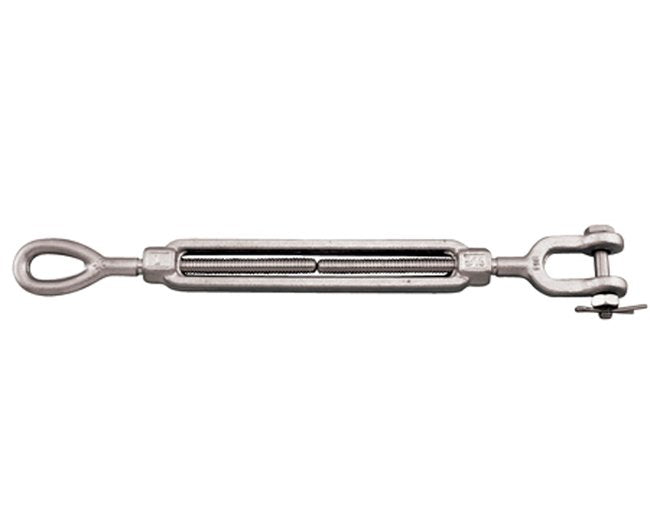

Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle

Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle

SKU:STA-98b3d9

Discover durability and corrosion resistance with our Grade 316 Stainless Steel Turnbuckle, meeting ASTM standards.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle

Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle

$39.99

Quantity: 1

Claim Your Seller Account

Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle

Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Grade 316 Stainless Steel Forged Jaw and Eye Turnbuckle is a reliable choice for marine and industrial applications. This turnbuckle, available in sizes from 1/4" to 1-1/4", features an open body design for easy installation. Crafted from 316-NM stainless steel through drop forged fabrication, it offers exceptional corrosion resistance and durability. Meeting the ASTM specification F1145-05 (2011) Type 1, Class H standards, this turnbuckle has a Working Load Limit (WLL) of 1200 lb, making it ideal for a wide range of heavy-duty projects.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

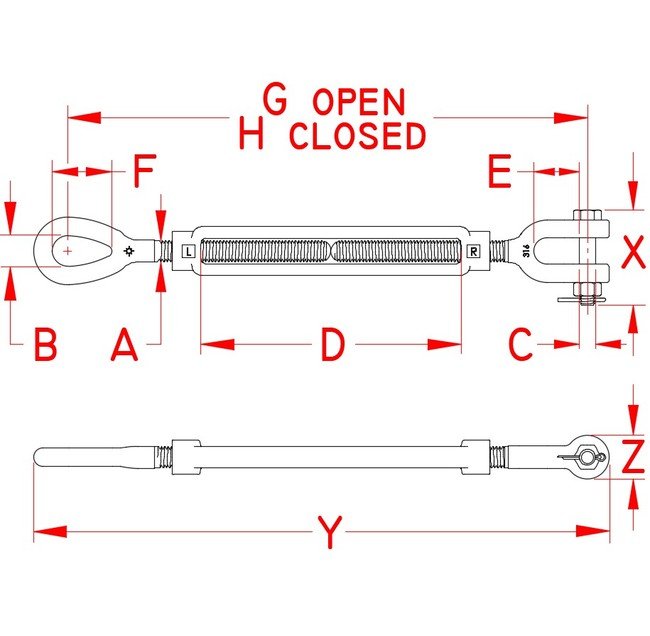

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
0.50 in
Specifications Dimension C
0.31 in
Specifications Dimension D
6.00 in
Specifications Dimension E
0.88 in
Specifications Dimension F
1.07 in
Specifications Dimension G
15.60 in
Specifications Dimension H
11.00 in
Specifications Dimension X
1.92 in
Specifications Dimension Y
12.00 in
Specifications Dimension Z
0.92 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
0.84 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
