Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
SKU:STA-926d23
High-quality Grade 316 Stainless Steel Turnbuckle with WLL of 8,000 lb. Meets ASTM F1145-05 (2011) and ASME B30.26-2010 standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

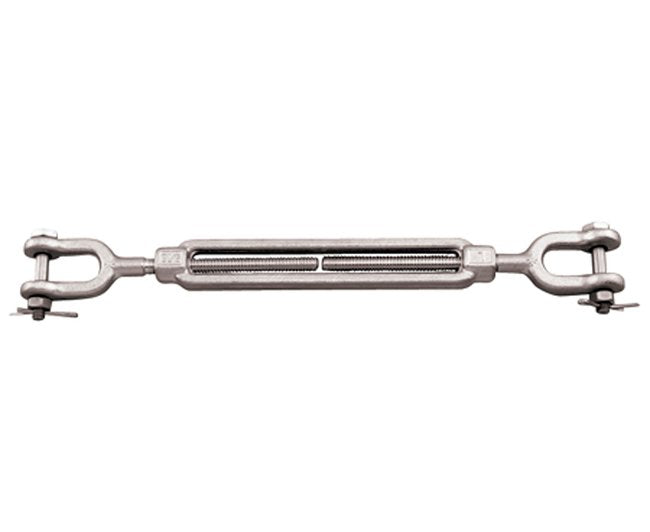

The Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle is designed with an open body for versatility in marine and industrial applications. Made from premium stainless steel, it offers maximum corrosion resistance and durability. This turnbuckle meets ASTM specification F1145-05 (2011) Type 1, Class G, ensuring high-quality performance. With a Working Load Limit (WLL) of 8,000 lb, this Suncor product is drop-forged to meet ASME B30.26-2010 Section 26-2.0 standards.

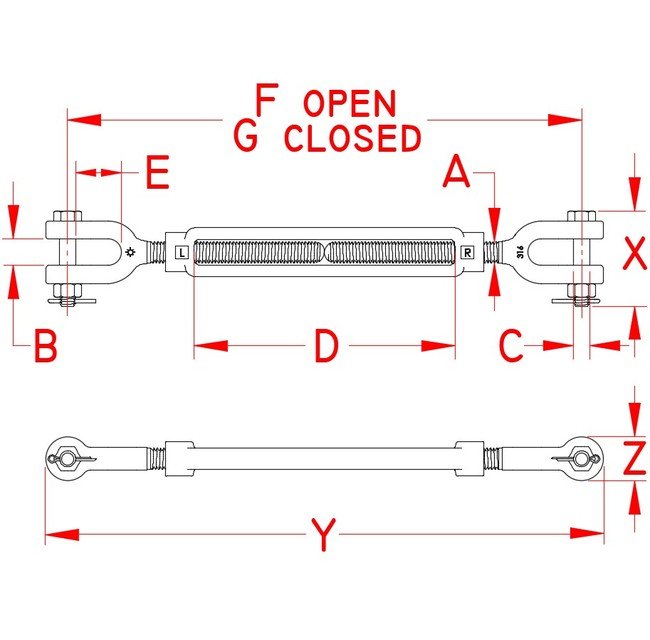

Product Specifications
Specifications Dimension A
1 in
Specifications Dimension B
1.25 in
Specifications Dimension C
0.88 in
Specifications Dimension D
6.00 in
Specifications Dimension E
2.19 in
Specifications Dimension F
24.00 in
Specifications Dimension G
18.00 in
Specifications Dimension X
4.52 in
Specifications Dimension Y
20.50 in
Specifications Dimension Z
2.13 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
11.17 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
