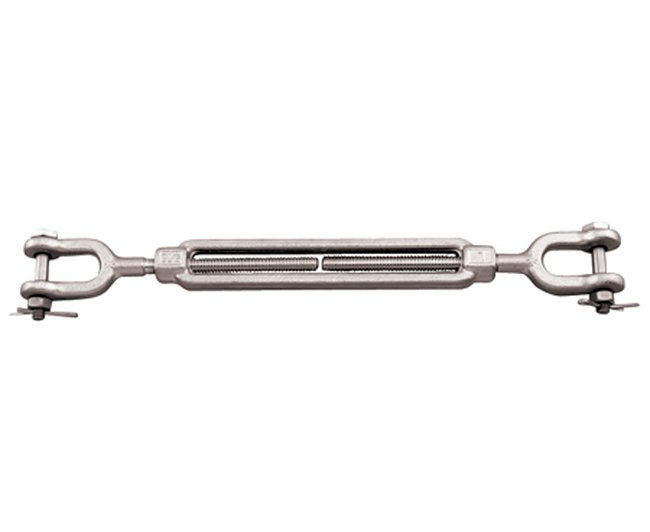

Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
SKU:STA-41400c
Heavy-duty Grade 316 Stainless Steel Turnbuckle for marine and industrial use, ASTM F1145-05, 2200 lb WLL
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
$34.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your marine and industrial projects with the Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle. Crafted with precision drop forging, these turnbuckles offer superior corrosion resistance and durability. Compliant with ASTM F1145-05 (2011) Type 1, Class G standards, these Suncor exclusive turnbuckles meet rigorous industry specifications. With a working load limit of 2200 lb, these turnbuckles are a reliable choice for your applications.
Product Specifications

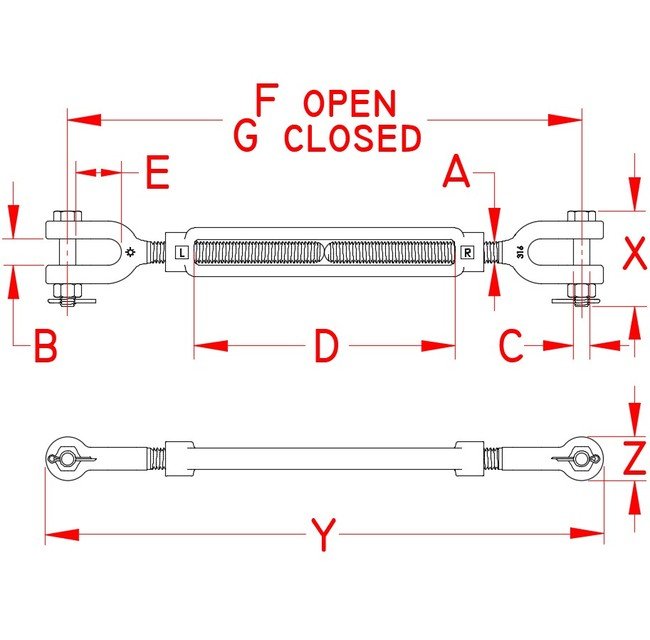

Specifications Dimension A
1/2 in
Specifications Dimension B
0.63 in
Specifications Dimension C
0.38 in
Specifications Dimension D
6.00 in
Specifications Dimension E
1.07 in
Specifications Dimension F
18.00 in
Specifications Dimension G
12.00 in
Specifications Dimension X
2.36 in
Specifications Dimension Y
13.25 in
Specifications Dimension Z
1.06 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
1.74 lb
Specifications Working Load Limit Wll
2200 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
