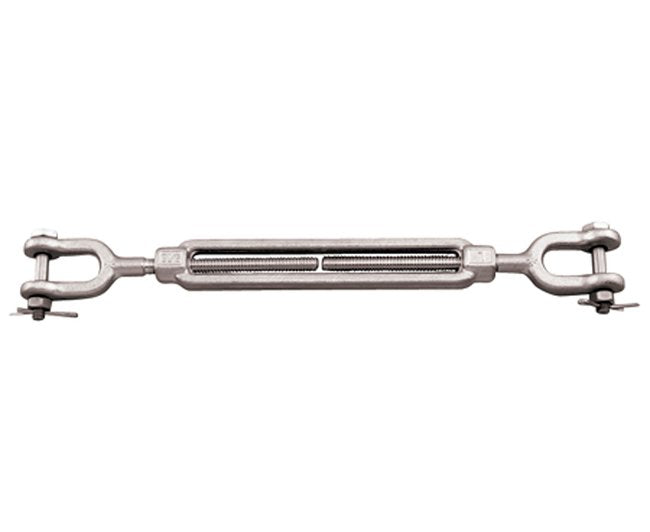

Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle

Name: Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle
Brand: Suncor Stainless, Inc.
SKU: STA-a5d309
Price: 58.99 USD
Availability: OutOfStock

SKU:STA-a5d309

Enhance your projects with Grade 316 Stainless Steel Turnbuckle, meeting ASTM F1145-05 (2011) standards. Reliable, durable, and corrosion-resistant.

$58.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your marine and industrial projects with our Grade 316 Stainless Steel Forged Jaw and Jaw Turnbuckle. Constructed to meet ASTM F1145-05 (2011) Type 1, Class G standards, this turnbuckle ensures maximum corrosion resistance and durability. With a Working Load Limit of 3500 lb, Suncor's exclusive design offers reliability and strength. This drop forged turnbuckle, in compliance with ASME B30.26-2010 Section 26-2.0, is ideal for heavy-duty applications, embodying quality and precision for your needs.

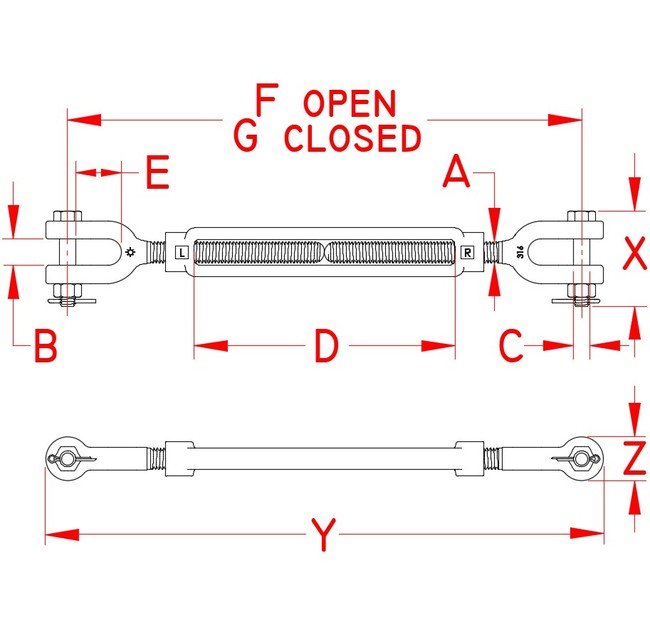

Product Specifications

Specifications Dimension A

5/8 in

Specifications Dimension B

0.75 in

Specifications Dimension C

0.50 in

Specifications Dimension D

6.00 in

Specifications Dimension E

1.38 in

Specifications Dimension F

21.00 in

Specifications Dimension G

13.50 in

Specifications Dimension X

2.86 in

Specifications Dimension Y

15.00 in

Specifications Dimension Z

1.34 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Mil Spec

Yes

Specifications Specification

ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655

Specifications Suncor Exclusive

Yes

Specifications Weight

3.1 lb

Specifications Working Load Limit Wll

3500 lb

CAGE

1CXX6

NAICS

332510

PSC

4030
