Grade 316 Stainless Steel Forged Jaw & Jaw Swivel - 5/8"
Grade 316 Stainless Steel Forged Jaw & Jaw Swivel - 5/8"
SKU:STA-3928f0
Grade 316 Stainless Steel Forged Swivel, 1,600 lb WLL, MIL-DTL-32655 Compliant
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Forged Jaw & Jaw Swivel - 5/8"
$45.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Forged Jaw & Jaw Swivel - 5/8"
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

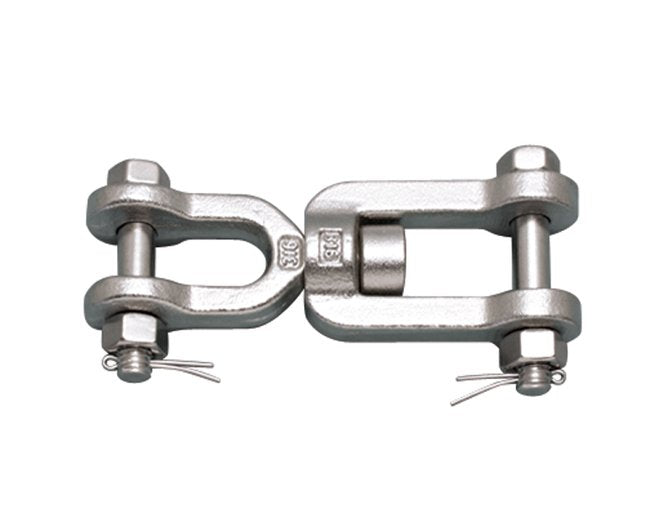

Enhance your lifting and rigging tasks with this grade 316 stainless steel Forged Jaw & Jaw Swivel. Designed for applications where twists are undesirable, this swivel offers maximum corrosion resistance and durability. With a working load limit of 1,600 lbs, this positioning device in sizes ranging from 3/16" to 5/8" provides reliability for frequent attaching and detaching needs. Compliant with MIL-DTL-32655 specification, this Suncor exclusive swivel ensures quality and performance for lifting operations.

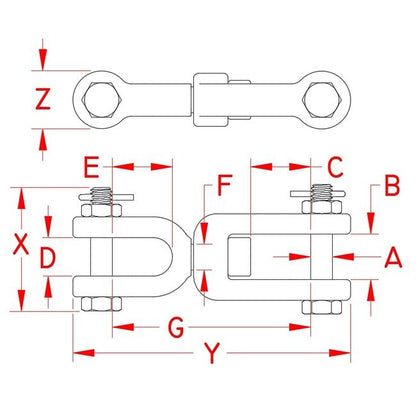

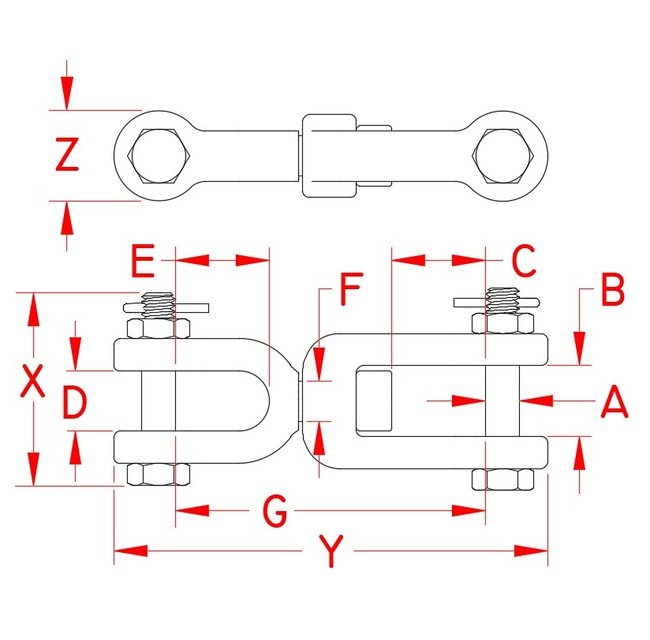

Product Specifications
Specifications Dimension A
5/16 in
Specifications Dimension B
0.66 in
Specifications Dimension C
0.88 in
Specifications Dimension D
0.56 in
Specifications Dimension E
0.88 in
Specifications Dimension F
0.38 in
Specifications Dimension G
2.89 in
Specifications Dimension X
2.00 in
Specifications Dimension Y
4.05 in
Specifications Dimension Z
0.88 in
Specifications Fabrication Type
Drop Forged
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
0.52 lb
Specifications Working Load Limit Wll
1,600 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
