Grade 316 Stainless Steel Forged Stub & Stub Turnbuckle
Grade 316 Stainless Steel Forged Stub & Stub Turnbuckle
SKU:STA-d21b16
Top-quality Grade 316 Stainless Steel Turnbuckle with 8,000 lb WLL, ideal for marine and industrial uses. ASTM F1145-05 (2011) compliant.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Forged Stub & Stub Turnbuckle
$79.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Forged Stub & Stub Turnbuckle
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Engineered for superior corrosion resistance, the Grade 316 Stainless Steel Forged Stub & Stub Turnbuckle is ideal for marine and industrial applications. Compliant with ASTM F1145-05 (2011) Type 1, Class C standards, this turnbuckle offers a Working Load Limit (WLL) of 8,000 lb. Precision drop-forged from 316-NM stainless steel with dimensions meeting stringent industry requirements, this turnbuckle ensures durability and reliability for a wide range of projects.
Product Specifications

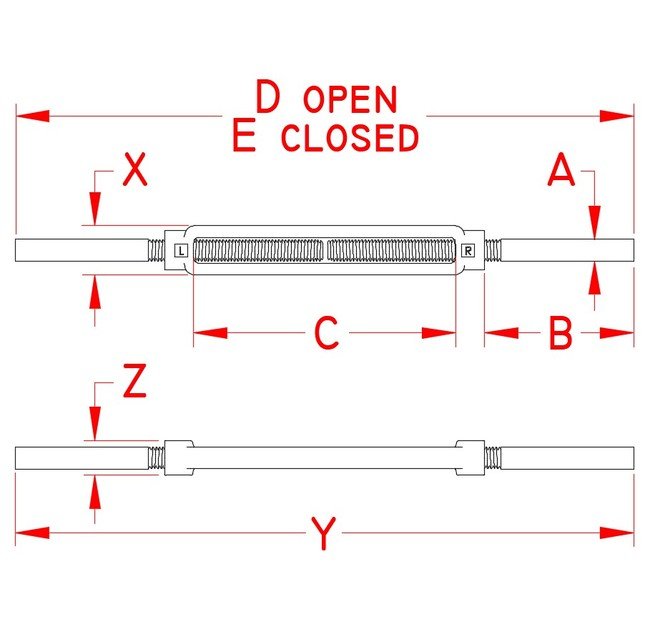

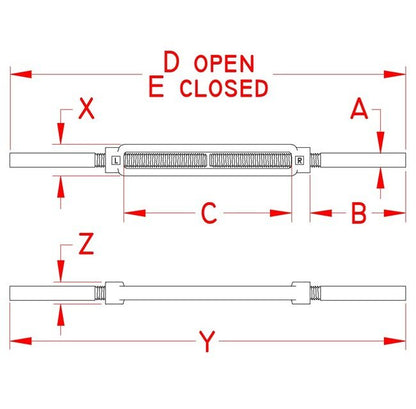

Specifications Dimension A
1 in
Specifications Dimension B
4.65 in
Specifications Dimension C
12.00 in
Specifications Dimension D
35.75 in
Specifications Dimension E
24.00 in
Specifications Dimension X
2.22 in
Specifications Dimension Y
24.00 in
Specifications Dimension Z
1.58 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
9 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
