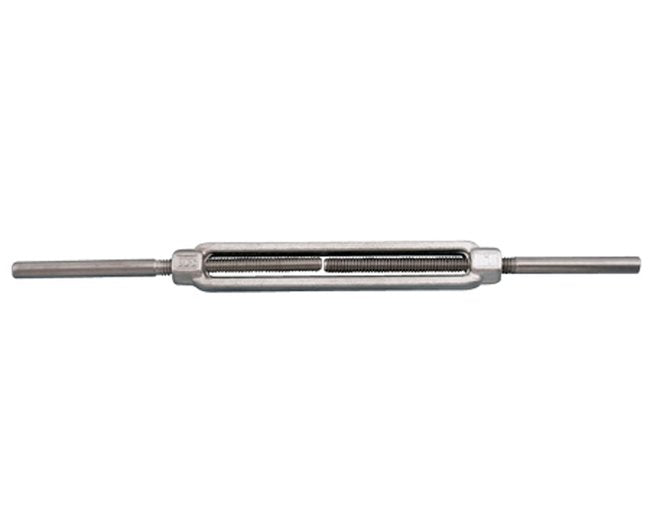

Grade 316 Stainless Steel Forged Stub Turnbuckle

Grade 316 Stainless Steel Forged Stub Turnbuckle

SKU:STA-b11249

Premium Grade 316 Stainless Steel Turnbuckle for marine & industrial use. ASTM F1145-05 (2011) Type 1, Class C compliant. WLL: 12,500 lb.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

Grade 316 Stainless Steel Forged Stub Turnbuckle

Grade 316 Stainless Steel Forged Stub Turnbuckle

$89.99

Quantity: 1

Claim Your Seller Account

Grade 316 Stainless Steel Forged Stub Turnbuckle

Grade 316 Stainless Steel Forged Stub Turnbuckle

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Grade 316 Stainless Steel Forged Stub Turnbuckle is specially designed for marine and industrial applications, offering exceptional corrosion resistance and durability. Available in sizes from 1/4" to 1-1/4", this turnbuckle ensures a secure fit for various projects. Compliant with ASTM specification F1145-05 (2011) Type 1, Class C, and with a Working Load Limit (WLL) of 12,500 lb, it meets stringent quality standards, making it ideal for government and institutional procurement needs.

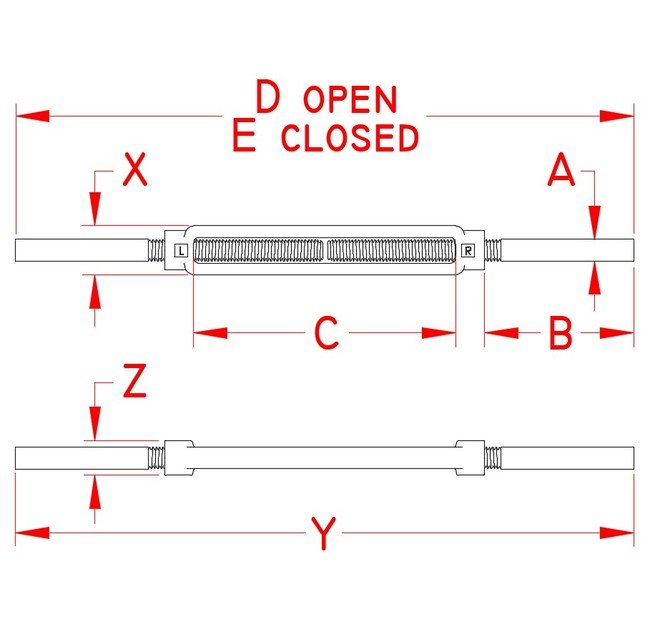

Product Specifications

Specifications Dimension A
1-1/4 in
Specifications Dimension B
4.90 in
Specifications Dimension C
12.00 in
Specifications Dimension D
37.75 in
Specifications Dimension E
26.00 in
Specifications Dimension X
2.61 in
Specifications Dimension Y
26.00 in
Specifications Dimension Z
1.85 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
13.79 lb
Specifications Working Load Limit Wll
12,500 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
