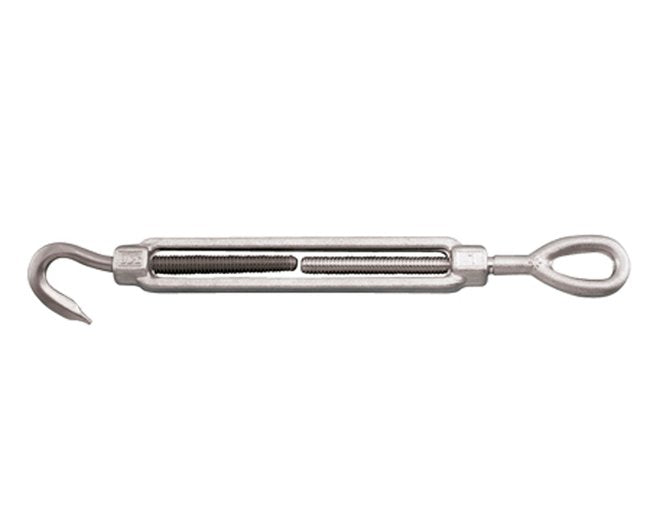

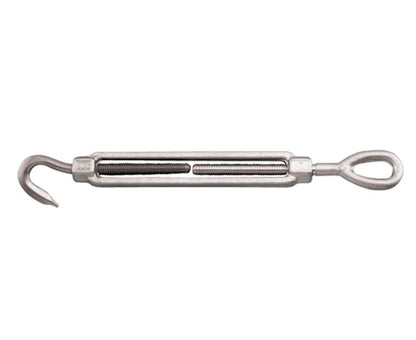

Meet your marine and industrial needs with our Grade 316 Stainless Steel Hook and Eye Turnbuckle. Crafted for maximum corrosion resistance, this turnbuckle is available in various sizes to suit different projects. It is compliant with ASTM specification F1145-05 (2011) Type 1, Class F, ensuring durability and performance. With a Working Load Limit (WLL) of 1,050 lb and precise dimensions, this turnbuckle is a reliable choice for heavy-duty applications.
Product Specifications

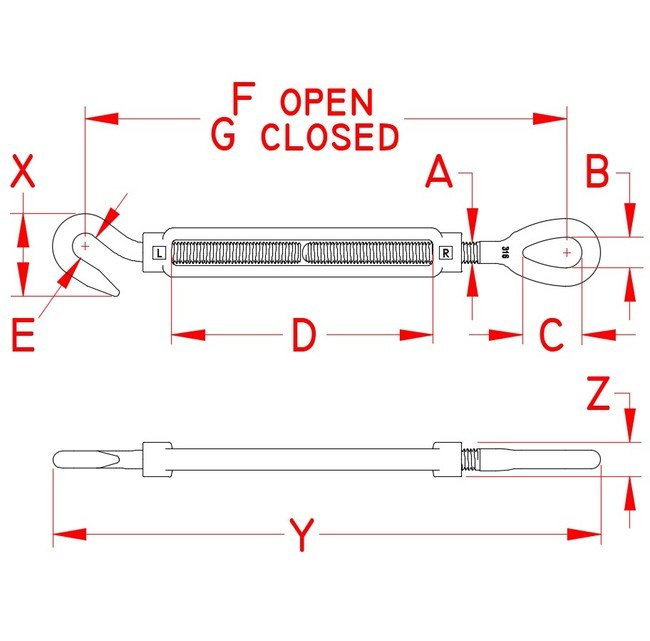

Specifications Dimension A
1/2 in
Specifications Dimension B
0.75 in
Specifications Dimension C
1.36 in
Specifications Dimension D
6.00 in
Specifications Dimension E
0.55 in
Specifications Dimension F
16.40 in
Specifications Dimension G
12.00 in
Specifications Dimension X
1.87 in
Specifications Dimension Y
12.75 in
Specifications Dimension Z
0.82 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D
Specifications Suncor Exclusive
Yes
Specifications Weight
1.36 lb
Specifications Working Load Limit Wll
1,050 lb
