Grade 316 Stainless Steel Jaw Swivel Snap Shackle

Name: Grade 316 Stainless Steel Jaw Swivel Snap Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-a779c2
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-a779c2

Premium Grade 316 Stainless Steel Jaw Swivel Snap Shackle for marine and industrial applications. Durable, corrosion-resistant, and compliant.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

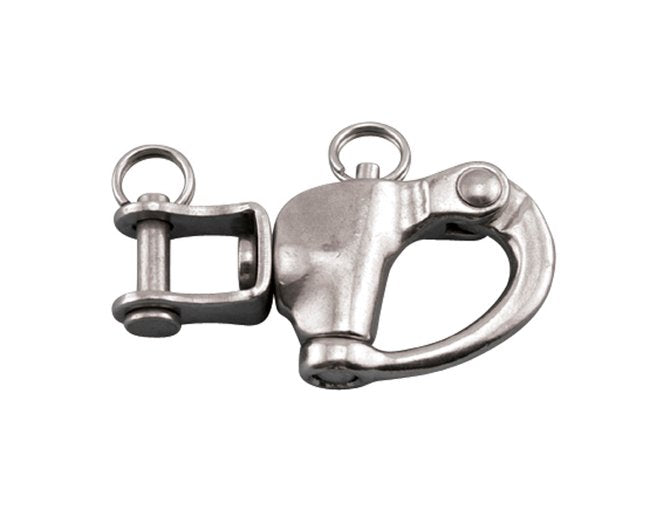

The Grade 316 Stainless Steel Jaw Swivel Snap Shackle is a high-quality marine and industrial-grade snap shackle designed for superior durability and corrosion resistance. Available in sizes ranging from 2-3/4" to 5", this precision cast and stamped shackle features a removable jaw pin for easy attachment. With a working load limit of 1,800 lb, this Suncor branded snap shackle is ideal for various applications requiring reliability and strength. Compliant with federal procurement standards, this snap shackle meets the strict requirements of marine and industrial use.

Product Specifications

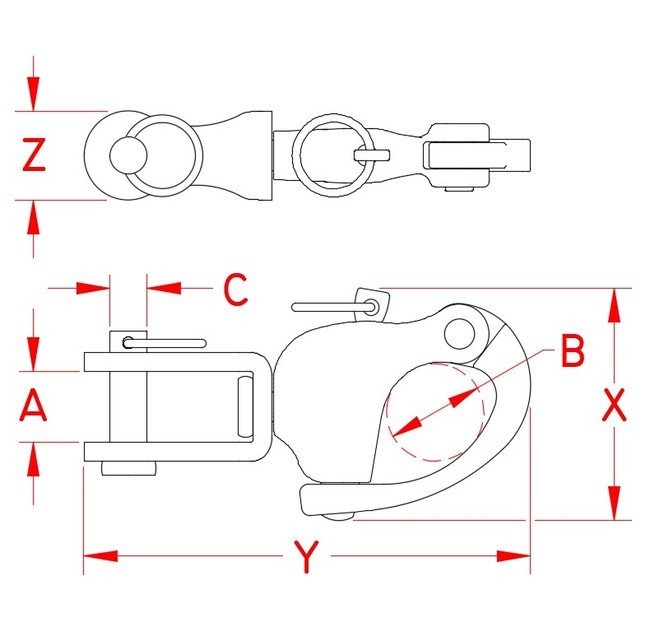

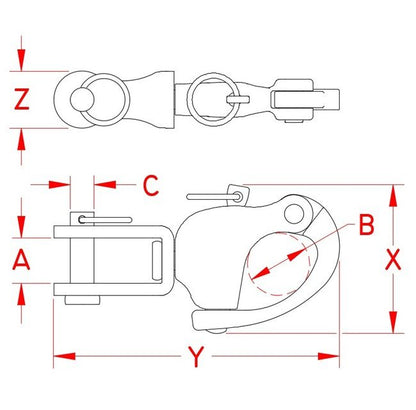

Specifications Dimension A

0.87 in

Specifications Dimension B

1.05 in

Specifications Dimension C

0.48 in

Specifications Dimension X

2.20 in

Specifications Dimension Y

4.85 in

Specifications Dimension Z

0.96 in

Specifications Fabrication Type

Precision Cast | Stamped

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

0.78 lb

Specifications Working Load Limit Wll

1,800 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
