Grade 316 Stainless Steel Long D Shackle with Captive Pin

Grade 316 Stainless Steel Long D Shackle with Captive Pin

SKU:STA-f1633c

Grade 316 Stainless Steel Long D Shackle with Captive Pin. Self-locking feature, corrosion-resistant, ideal for marine applications.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Grade 316 Stainless Steel Long D Shackle with Captive Pin

Grade 316 Stainless Steel Long D Shackle with Captive Pin

$29.99

Quantity: 1

Claim Your Seller Account

Grade 316 Stainless Steel Long D Shackle with Captive Pin

Grade 316 Stainless Steel Long D Shackle with Captive Pin

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

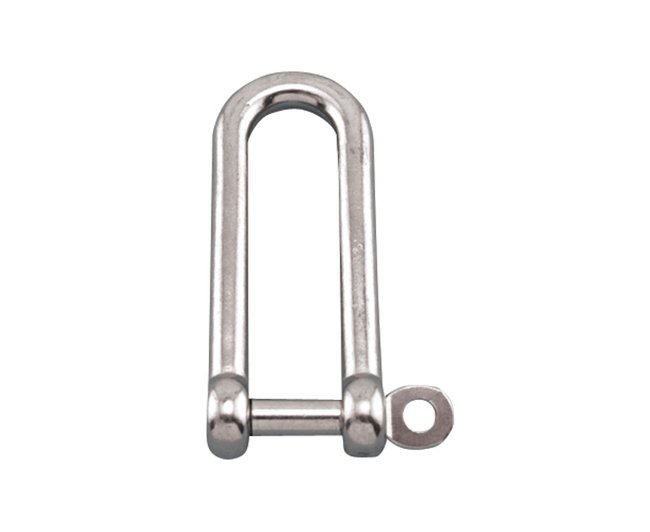

The Grade 316 Stainless Steel Long D Shackle with Captive Pin is designed with a self-locking feature to prevent the pin from backing out. The captive pin, integral to the shackle body, ensures it remains securely in place without the risk of falling out. Crafted from high-quality stainless steel, this shackle offers exceptional corrosion resistance and durability, making it ideal for marine applications. Available in various sizes, ranging from 5/32" to 1/2", this precision-cast shackle from Suncor guarantees a working load limit of 750 lb, providing reliable performance in demanding environments.

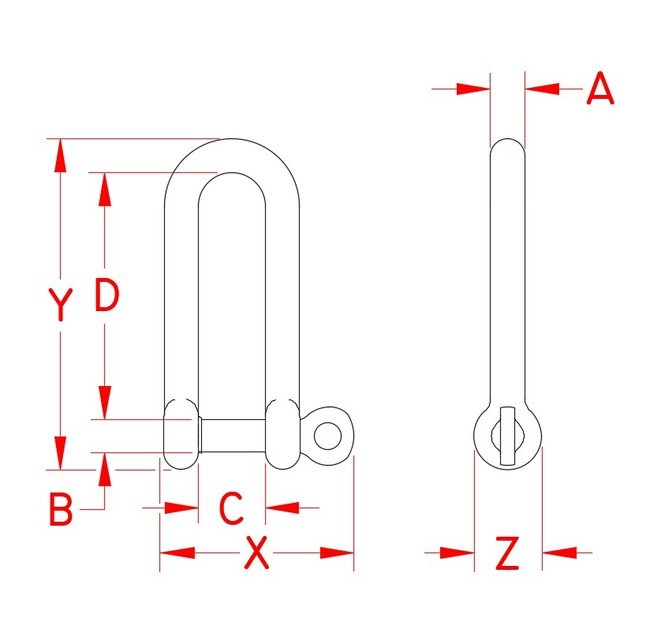

Product Specifications

Specifications Dimension A
1/4 in
Specifications Dimension B
0.23 in
Specifications Dimension C
0.46 in
Specifications Dimension D
1.77 in
Specifications Dimension X
1.32 in
Specifications Dimension Y
2.40 in
Specifications Dimension Z
0.48 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.08 lb
Specifications Working Load Limit Wll
750 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
