Grade 316 Stainless Steel Long D Shackle with Captive Pin

Grade 316 Stainless Steel Long D Shackle with Captive Pin

SKU:STA-41cf8c

Secure your marine fixtures with Grade 316 Stainless Steel Long D Shackle & Captive Pin, ensuring durability & corrosion resistance. Perfect for marine applications!

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

Grade 316 Stainless Steel Long D Shackle with Captive Pin

Grade 316 Stainless Steel Long D Shackle with Captive Pin

$14.99

Quantity: 1

Claim Your Seller Account

Grade 316 Stainless Steel Long D Shackle with Captive Pin

Grade 316 Stainless Steel Long D Shackle with Captive Pin

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

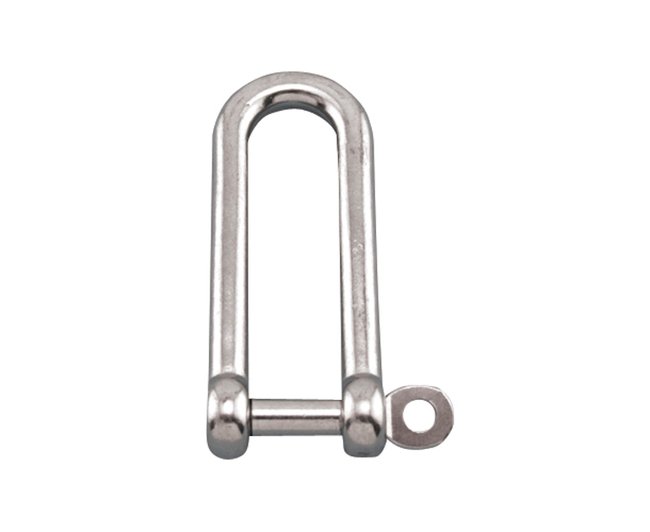

Enhance your marine applications with the Grade 316 Stainless Steel Long D Shackle featuring a captive pin with a self-locking mechanism for secure fastening. Crafted for durability and corrosion resistance, this shackle, available in sizes ranging from 5/32" to 1/2", ensures the pin remains intact even when open, preventing accidental drops in water. Precision cast and meeting top industry standards, this shackle guarantees reliability in challenging environments.

Product Specifications

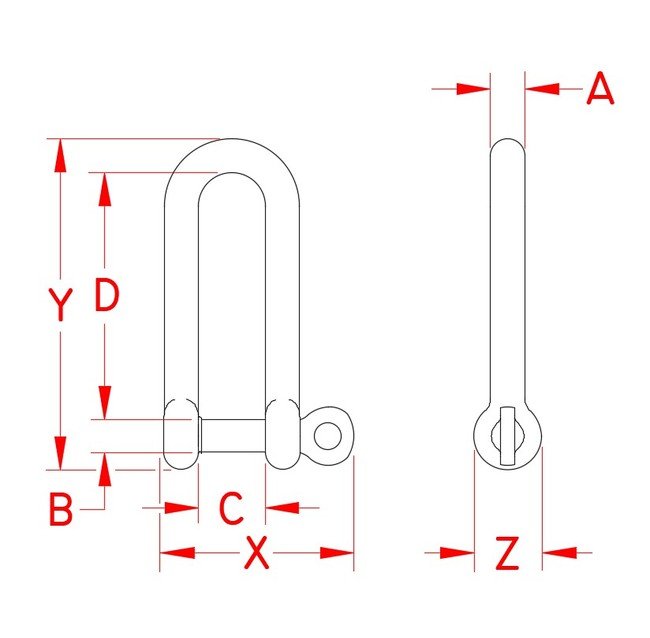

Specifications Dimension A
3/16 in
Specifications Dimension B
0.19 in
Specifications Dimension C
0.39 in
Specifications Dimension D
1.47 in
Specifications Dimension X
1.16 in
Specifications Dimension Y
1.97 in
Specifications Dimension Z
0.38 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.05 lb
Specifications Working Load Limit Wll
500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
