Grade 316 Stainless Steel Long D Shackle with Captive Pin - 1/2 in

Grade 316 Stainless Steel Long D Shackle with Captive Pin - 1/2 in

SKU:STA-2688f9

Grade 316 Stainless Steel Long D Shackle with Captive Pin, ideal for marine applications, self-locking pin.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Grade 316 Stainless Steel Long D Shackle with Captive Pin - 1/2 in

Grade 316 Stainless Steel Long D Shackle with Captive Pin - 1/2 in

$24.99

Quantity: 1

Claim Your Seller Account

Grade 316 Stainless Steel Long D Shackle with Captive Pin - 1/2 in

Grade 316 Stainless Steel Long D Shackle with Captive Pin - 1/2 in

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

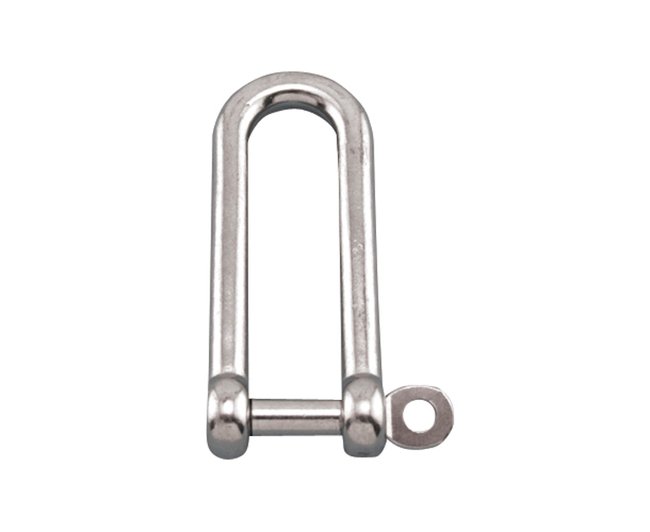

The Grade 316 Stainless Steel Long D Shackle with Captive Pin offers exceptional durability and corrosion resistance for marine applications. Featuring a self-locking captive pin that is integral to the shackle body, ensuring it won't back out or fall off when open. This precision-cast shackle, manufactured by Suncor, has a Working Load Limit of 1500 lb, making it ideal for heavy-duty use in marine and industrial settings. Available in sizes ranging from 5/32" to 1/2", this shackle is designed to meet the stringent requirements of government and institutional buyers.

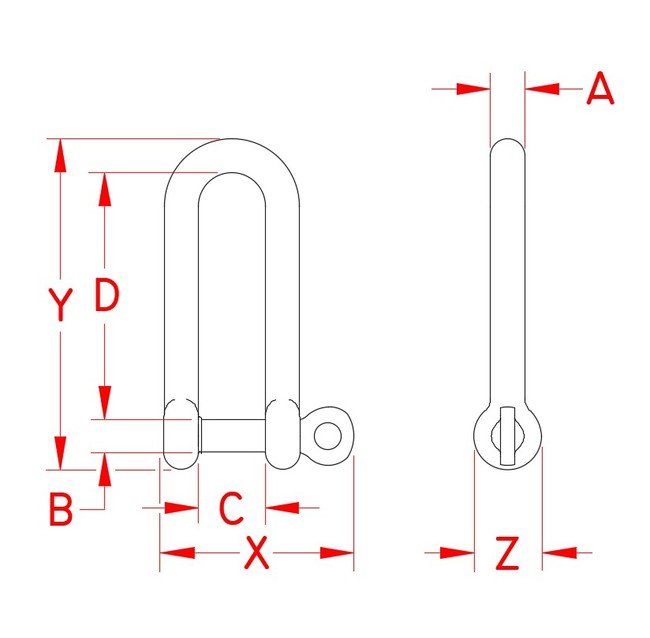

Product Specifications

Specifications Dimension A
1/2 in
Specifications Dimension B
0.47 in
Specifications Dimension C
0.93 in
Specifications Dimension D
3.54 in
Specifications Dimension X
2.65 in
Specifications Dimension Y
4.68 in
Specifications Dimension Z
0.95 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.618 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
