Grade 316 Stainless Steel Machine Eye Bolt

Grade 316 Stainless Steel Machine Eye Bolt

SKU:STA-127e8d

Premium Grade 316 Stainless Steel Eye Bolt for marine & industrial applications. Sizes: 1/4" to 1". WLL: 3,200 lb. Suncor branded.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

Grade 316 Stainless Steel Machine Eye Bolt

Grade 316 Stainless Steel Machine Eye Bolt

$12.99

Quantity: 1

Claim Your Seller Account

Grade 316 Stainless Steel Machine Eye Bolt

Grade 316 Stainless Steel Machine Eye Bolt

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

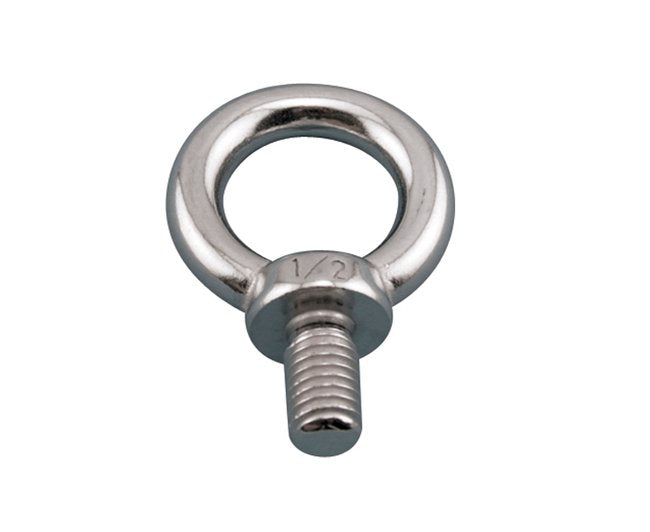

The Grade 316 Stainless Steel Machine Eye Bolt, featuring UNC threading and size options from 1/4" to 1", is designed for robust applications. Crafted with precision-cast and machined 316 stainless steel, this eye bolt offers exceptional corrosion resistance and a substantial Working Load Limit (WLL) of 3,200 lb, ideal for marine and industrial use. Suncor branded and meticulously engineered, this Machine Eye Bolt ensures reliability and longevity in diverse projects.

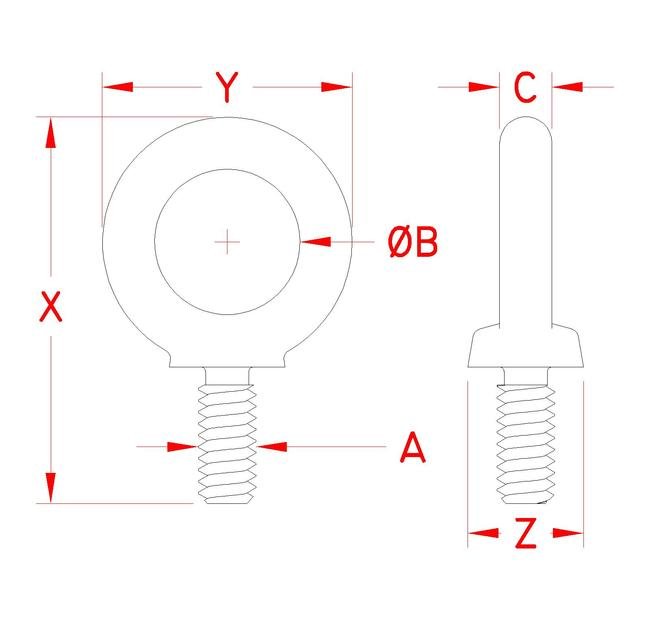

Product Specifications

Specifications Dimension A
5/8 in
Specifications Dimension B
1.32 in
Specifications Dimension C
0.55 in
Specifications Dimension X
3.47 in
Specifications Dimension Y
2.41 in
Specifications Dimension Z
1.15 in
Specifications Fabrication Type
Precision Cast | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.52 lb
Specifications Working Load Limit Wll
3,200 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
