Grade 316 Stainless Steel Rigging Toggle Clevis Pin

Name: Grade 316 Stainless Steel Rigging Toggle Clevis Pin
Brand: Suncor Stainless, Inc.
SKU: RIG-c4da90
Price: 24.99 USD
Availability: OutOfStock

SKU:RIG-c4da90

Durable Grade 316 Stainless Steel Rigging Toggle Clevis Pin, ideal for marine and industrial applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

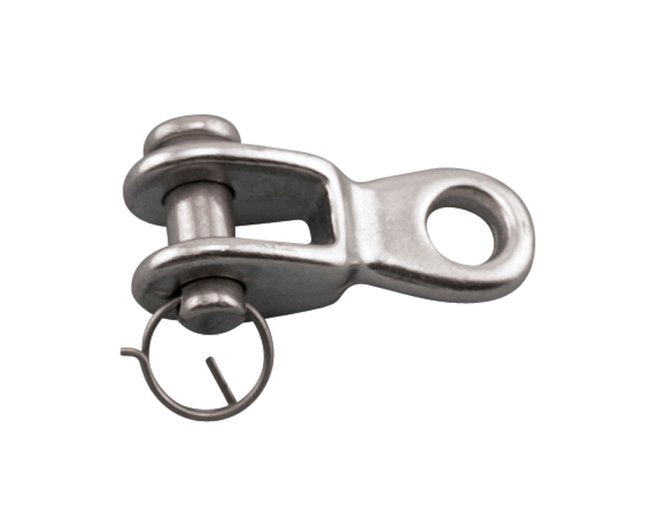

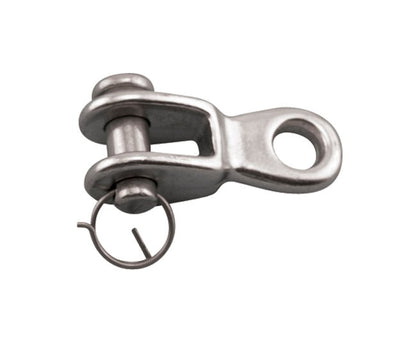

The Grade 316 Stainless Steel Rigging Toggle Clevis Pin is designed for marine applications requiring a sturdy, corrosion-resistant solution. Available in sizes from 7/32" to 1/2", this toggle features a removable clevis pin for easy installation. Crafted with precision cast 316 stainless steel, it offers exceptional durability. Perfect for situations where a jaw turnbuckle is misaligned, this toggle ensures secure rigging operations, making it a reliable choice for marine and industrial settings.

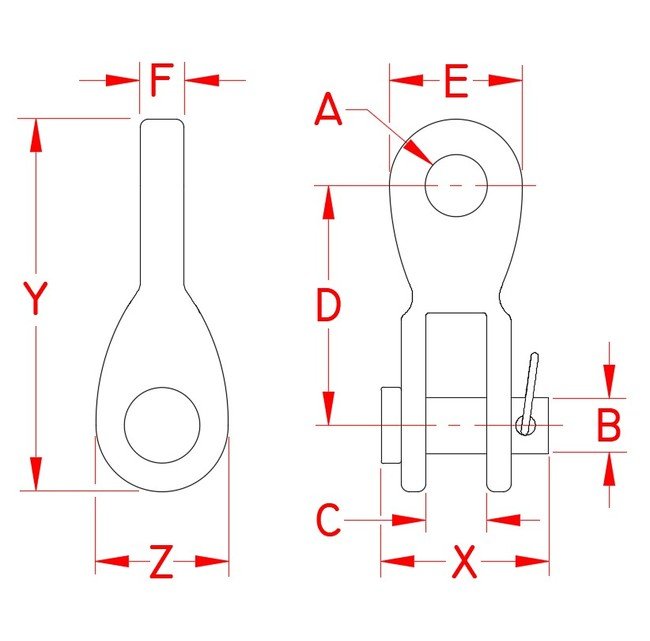

Product Specifications

Specifications Dimension A

1/4 in

Specifications Dimension B

0.24 in

Specifications Dimension C

0.28 in

Specifications Dimension D

1.12 in

Specifications Dimension E

0.55 in

Specifications Dimension F

0.20 in

Specifications Dimension X

0.80 in

Specifications Dimension Y

1.61 in

Specifications Dimension Z

0.54 in

Specifications Fabrication Type

Precision Cast

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

0.06 lb

Specifications Working Load Limit Wll

400 lb

CAGE

1CXX6

NAICS

332510

PSC

2040

Grade 316 Stainless Steel Rigging Toggle Clevis Pin
