Grade 316 Stainless Steel Straight D Shackle with Captive Pin
Grade 316 Stainless Steel Straight D Shackle with Captive Pin
SKU:STA-f62beb
High-grade stainless steel Straight D Shackle with captive pin for secure industrial and marine applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

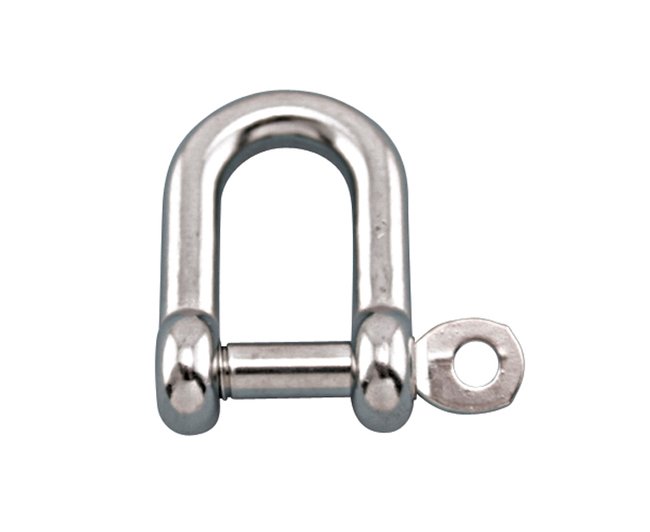

Experience unmatched safety and reliability with our Grade 316 Stainless Steel Straight D Shackle featuring a captive pin with a self-locking mechanism for enhanced security. Crafted for industrial and marine applications, this shackle ensures peace of mind as the pin is integrated into the body, preventing accidental drops. Made from high-quality 316 stainless steel, it offers superior corrosion resistance and durability. Choose from various sizes to suit your specific needs.

Product Specifications

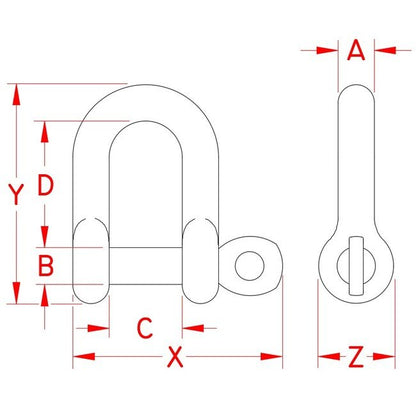

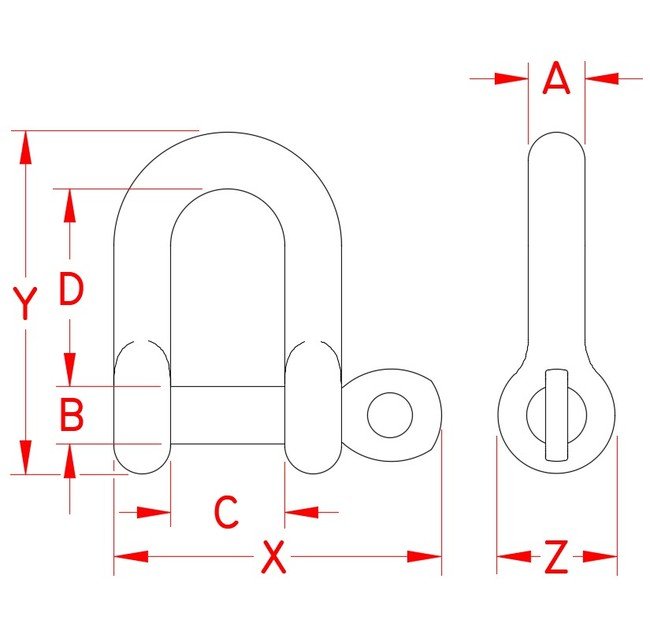

Specifications Dimension A
1/4 in
Specifications Dimension B
0.23 in
Specifications Dimension C
0.47 in
Specifications Dimension D
0.82 in
Specifications Dimension X
1.31 in
Specifications Dimension Y
1.40 in
Specifications Dimension Z
0.47 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.052 lb
Specifications Working Load Limit Wll
750 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
