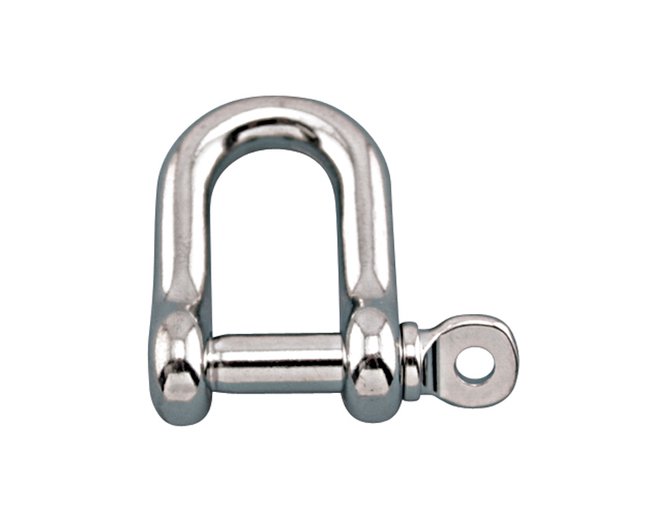

Grade 316 Stainless Steel Straight D Shackle with Screw Pin
Grade 316 Stainless Steel Straight D Shackle with Screw Pin
SKU:STA-1a4fc1
Premium Grade 316 Stainless Steel Straight D Shackle for marine and industrial use. Sizes from 5/32" to 1-1/4". WLL 2,500 lb.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Grade 316 Stainless Steel Straight D Shackle with Screw Pin offers exceptional corrosion resistance, making it ideal for marine and industrial applications. Available in sizes ranging from 5/32" to 1-1/4", this precision-cast shackle from Suncor ensures reliable performance in demanding environments. With a Working Load Limit (WLL) of 2,500 lb, this shackle is designed to meet the rigorous requirements of marine, industrial, and institutional sectors.

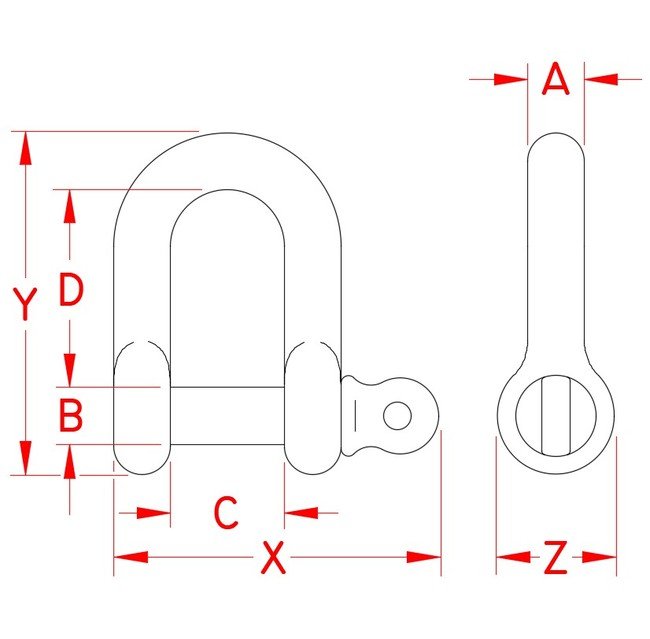

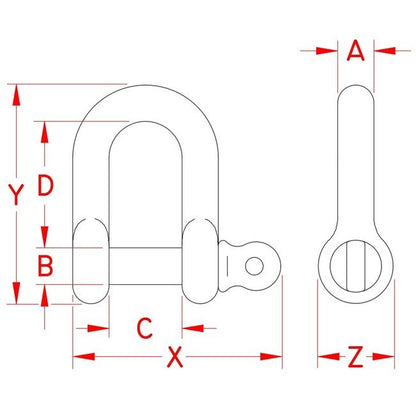

Product Specifications
Specifications Dimension A
1/2 in
Specifications Dimension B
0.54 in
Specifications Dimension C
1.09 in
Specifications Dimension D
1.84 in
Specifications Dimension X
3.19 in
Specifications Dimension Y
3.18 in
Specifications Dimension Z
1.07 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.66 lb
Specifications Working Load Limit Wll
2,500 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
