Grade 316 Stainless Steel Threaded Yoke End

Name: Grade 316 Stainless Steel Threaded Yoke End
Brand: Suncor Stainless, Inc.
SKU: STA-207eec
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-207eec

Grade 316 Stainless Steel Threaded Yoke End with UNC threads, ideal for marine and industrial turnbuckle applications.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

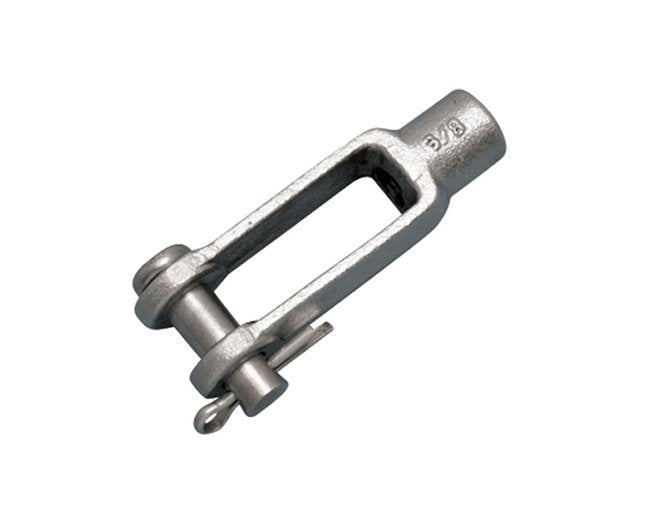

The Grade 316 Stainless Steel Threaded Yoke End offers superior corrosion resistance and durability, crafted for marine and industrial turnbuckle applications. Precisely drop-forged and machined, this yoke end features UNC threads and a working load limit of 5,200 lb. Suncor exclusive, this yoke end meets stringent industry standards for reliability and performance. Available in various sizes, this threaded yoke end ensures secure and dependable connections in challenging environments.

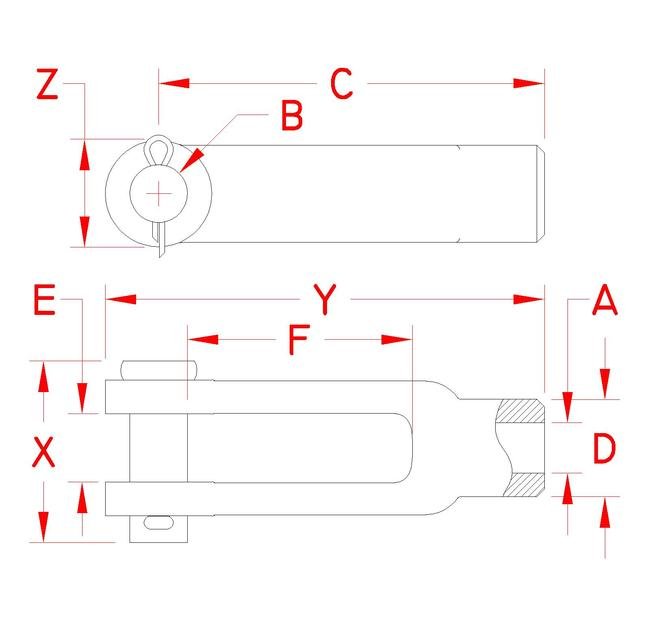

Product Specifications

Specifications Dimension A

3/4 in

Specifications Dimension B

0.75 in

Specifications Dimension C

6.06 in

Specifications Dimension D

1.25 in

Specifications Dimension E

0.79 in

Specifications Dimension F

4.25 in

Specifications Dimension X

2.24 in

Specifications Dimension Y

6.77 in

Specifications Dimension Z

1.44 in

Specifications Fabrication Type

Drop Forged | Precision Machined

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Weight

2.06 lb

Specifications Working Load Limit Wll

5,200 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
