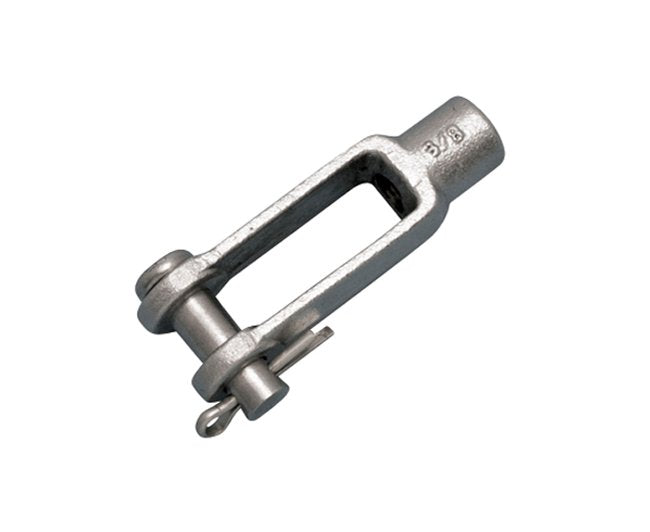

Grade 316 Stainless Steel Unthreaded Yoke End
Grade 316 Stainless Steel Unthreaded Yoke End
SKU:STA-fb1390
Premium Grade 316 Stainless Steel Unthreaded Yoke End for marine & industrial applications. Superior corrosion resistance & durability. Available in various sizes.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Unthreaded Yoke End
$29.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Unthreaded Yoke End
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your marine and industrial turnbuckle applications with the Grade 316 Stainless Steel Unthreaded Yoke End. Crafted from premium 316-NM stainless steel, this yoke end offers superior corrosion resistance and durability. Available in sizes ranging from 3/16" to 3/4", it is perfect for demanding environments. Manufactured through drop forging, it meets industry standards for strength and reliability.
Ready to Grow Without Cash Flow Constraints?

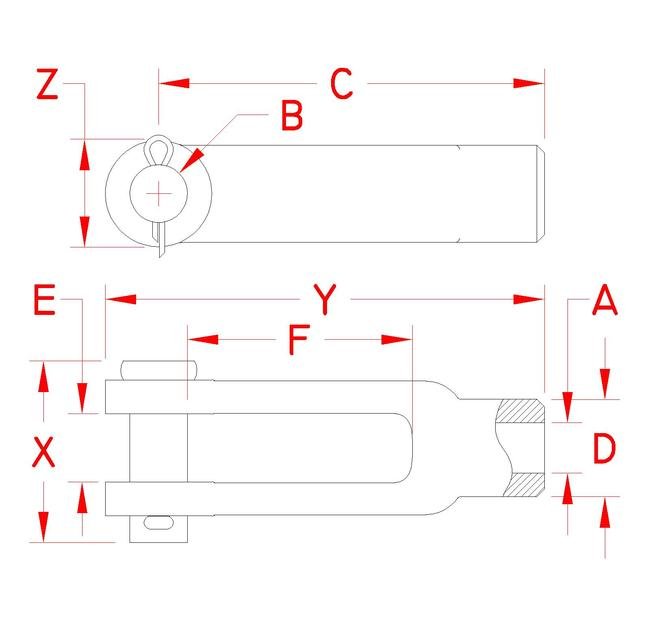

Product Specifications
Specifications Dimension A
0.33 in
Specifications Dimension B
0.38 in
Specifications Dimension C
2.50 in
Specifications Dimension D
0.63 in
Specifications Dimension E
0.44 in
Specifications Dimension F
1.46 in
Specifications Dimension X
1.30 in
Specifications Dimension Y
2.96 in
Specifications Dimension Z
0.71 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.25 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
