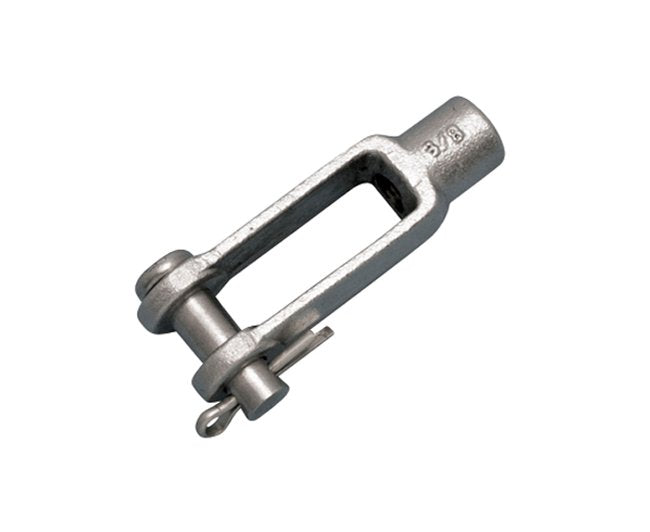

Grade 316 Stainless Steel Unthreaded Yoke End for Marine & Industrial Applications

Grade 316 Stainless Steel Unthreaded Yoke End for Marine & Industrial Applications

SKU:STA-564c15

Durable Grade 316 Stainless Steel Unthreaded Yoke End for marine & industrial use. Sizes from 3/16" to 3/4". Maximize corrosion resistance.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Grade 316 Stainless Steel Unthreaded Yoke End for Marine & Industrial Applications

Grade 316 Stainless Steel Unthreaded Yoke End for Marine & Industrial Applications

$29.99

Quantity: 1

Claim Your Seller Account

Grade 316 Stainless Steel Unthreaded Yoke End for Marine & Industrial Applications

Grade 316 Stainless Steel Unthreaded Yoke End for Marine & Industrial Applications

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your marine and industrial turnbuckle systems with the Grade 316 Stainless Steel Unthreaded Yoke End. Crafted from high-quality 316-NM stainless steel, this yoke end ensures maximum corrosion resistance and durability, essential for demanding marine environments. Available in sizes ranging from 3/16" to 3/4", this yoke end is drop forged for superior strength, with a working load limit of 5,200 lb. Trust in the Suncor exclusive design to meet your highest standards for quality and performance.

Product Specifications

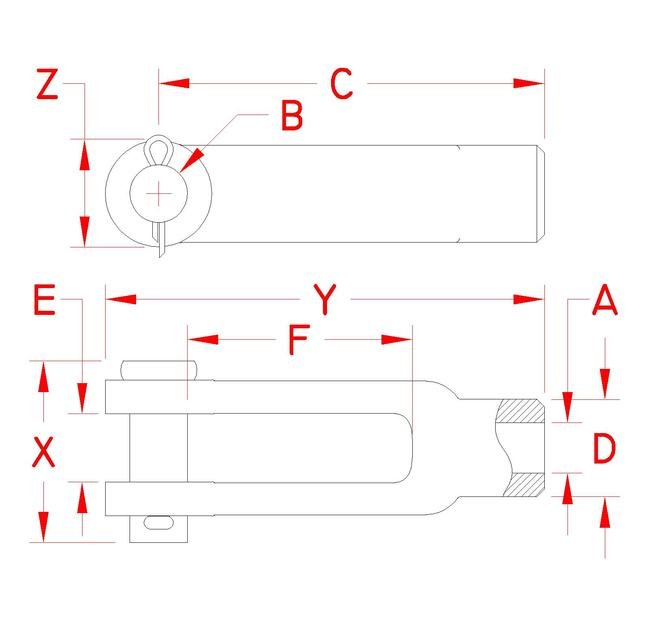

Specifications Dimension A
0.69 in
Specifications Dimension B
0.75 in
Specifications Dimension C
6.06 in
Specifications Dimension D
1.25 in
Specifications Dimension E
0.79 in
Specifications Dimension F
4.25 in
Specifications Dimension X
2.24 in
Specifications Dimension Y
6.77 in
Specifications Dimension Z
1.44 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
2.11 lb
Specifications Working Load Limit Wll
5,200 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
