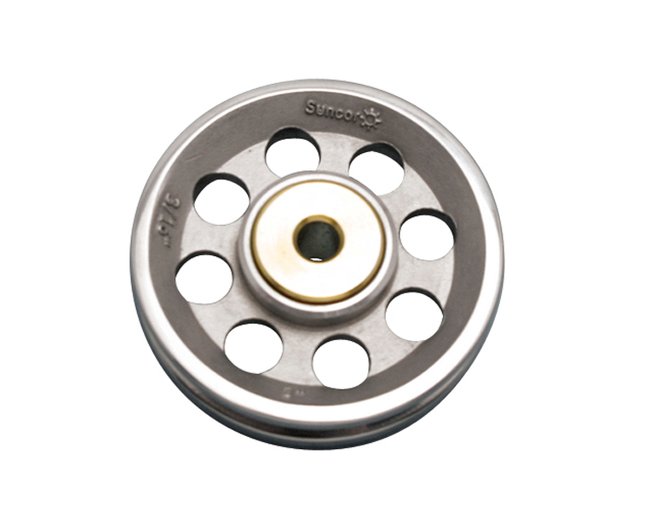

Grade 316 Stainless Steel Wire Rope Sheave with Bronze Bushing
Grade 316 Stainless Steel Wire Rope Sheave with Bronze Bushing
SKU:STA-4af979
Premium wire rope sheave in corrosion-resistant grade 316 stainless steel with bronze bushing. Ideal for marine & industrial rigging. WLL: 8,000 lb.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Grade 316 Stainless Steel Wire Rope Sheave with Bronze Bushing
$129.99
Quantity: 1
Claim Your Seller Account
Grade 316 Stainless Steel Wire Rope Sheave with Bronze Bushing
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your marine and industrial rigging operations with our Grade 316 Stainless Steel Wire Rope Sheave. This sheave features a durable bronze bushing and accommodates wire rope sizes from 3/32" to 3/8". With a Working Load Limit (WLL) of 8,000 lb, precision-cast construction, and corrosion-resistant 316 stainless steel material, this Suncor-exclusive sheave ensures reliability and longevity in demanding environments.

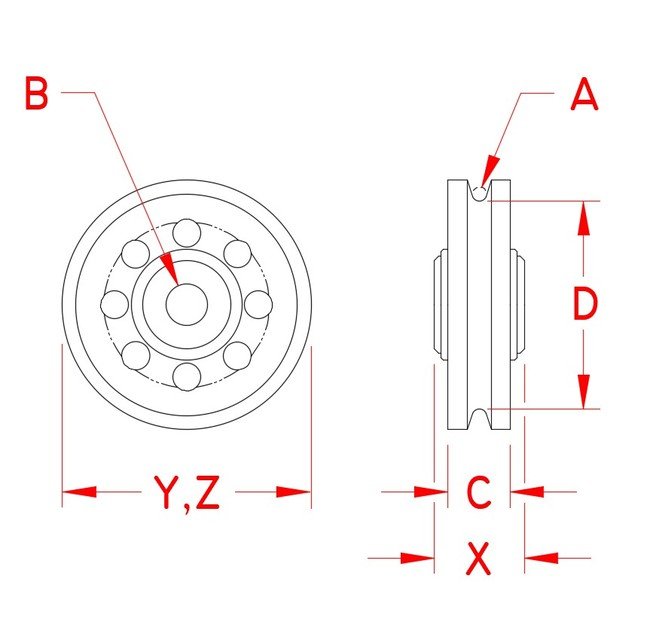

Product Specifications
Specifications Dimension A
3/8 in
Specifications Dimension B
1/2 in
Specifications Dimension C
1.38 in
Specifications Dimension D
5.25 in
Specifications Dimension X
1.63 in
Specifications Dimension Y
6.25 in
Specifications Dimension Z
6.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
5.79 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
