Grade B7 Alloy Steel Threaded Rod, Coarse Thread 2-4 1/2 - Plain Finish
Grade B7 Alloy Steel Threaded Rod, Coarse Thread 2-4 1/2 - Plain Finish
SKU:IND-662d41
High-strength Grade B7 Alloy Steel Threaded Rod with plain finish and coarse thread design. Perfect for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Grade B7 Alloy Steel Threaded Rod, Coarse Thread 2-4 1/2 - Plain Finish
$49.99
Quantity: 1
Claim Your Seller Account
Grade B7 Alloy Steel Threaded Rod, Coarse Thread 2-4 1/2 - Plain Finish
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Grade B7 Alloy Steel Threaded Rod is a durable and sturdy option suitable for various applications. Made from high-quality alloy steel, this threaded rod features a plain finish and a coarse thread style. With a weight capacity of 2736.00 lb per hundred pieces, it provides exceptional strength and robust performance. Ideal for construction, industrial, and engineering uses, this threaded rod meets stringent quality standards to ensure reliability and longevity.
Product Specifications
Additional Information 0

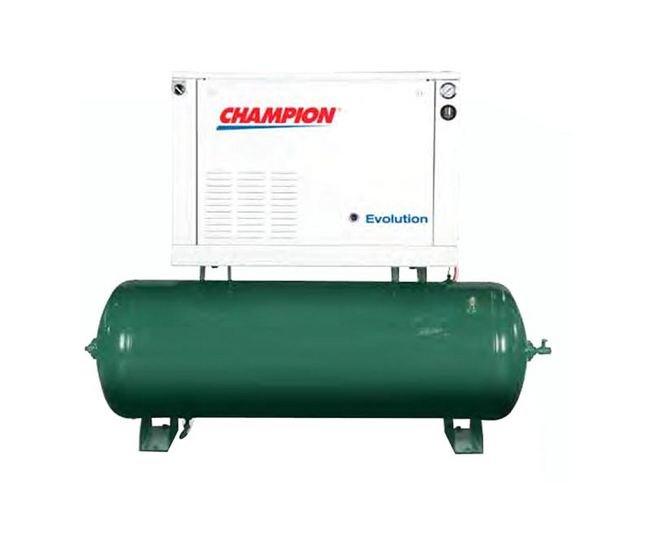

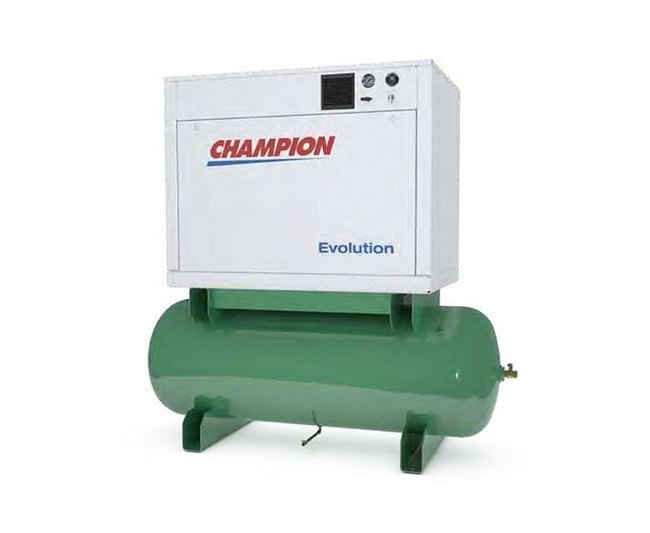

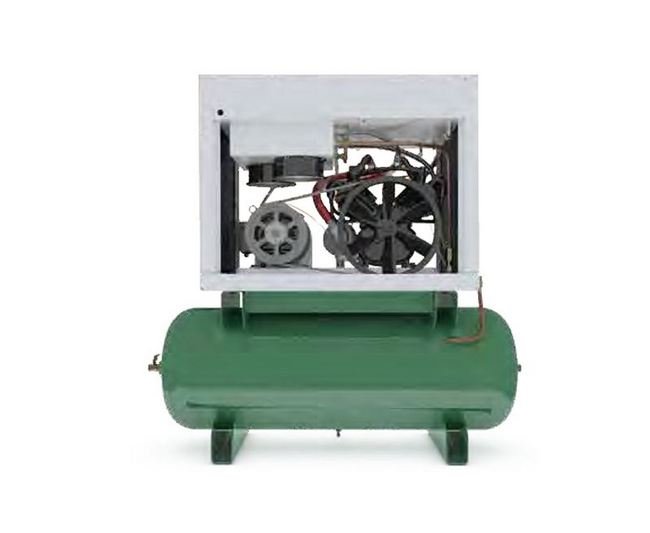

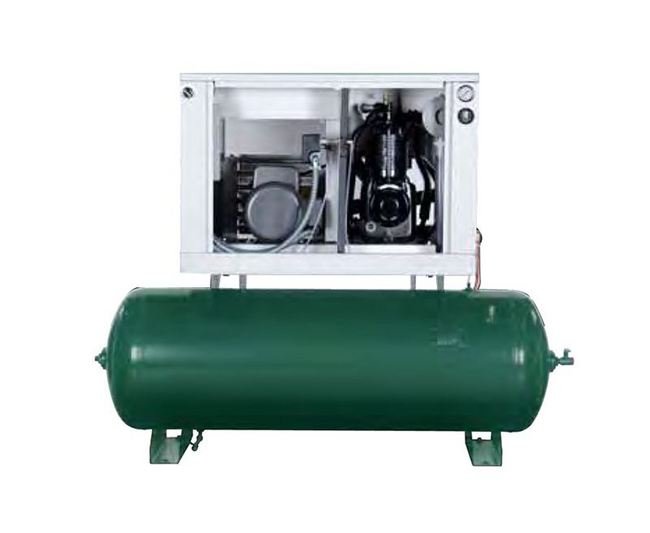

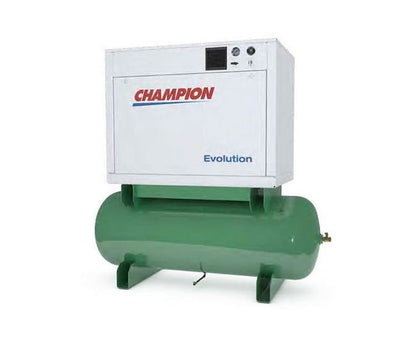

The Challenges of More Horsepower & More CFM Heat ControlAs the majority of reciprocating compressors' discharge temperatures can reach a 400º F level or higher, maximizing the motorâs service life and its long term reliability remains the challenge in designing a 10 and 15 horsepower quiet enclosed compressor. More CFM requires a larger compressor, so removing the heat from the low noise enclosure requires another creative engineering solution.The 10 and 15 horsepower Evolution solution implements dual cooling fans that pull cool ambient air from the bottom of the compressor through the package and discharge it through the top of the enclosure. Isolated coolers take the heat from the compressor pump through the included air cooled after cooler further reducing the temperature inside the enclosure.Vibration Minimization Similar to its 5 and 7.5 horsepower little brother, the 10 and 15 horsepower models have a one-piece powder coated inner base that supports both the compressor and the motor. Rubber vibration isolators separate the inner base from the enclosure for maximum noise and vibration control. The sound attenuating enclosure, made of 16 and 12 gauge steel with additional foam insulation, enables the compressor package to run quieter.Sound TestingWith a commitment to research and development, Champion provides our customers with products which uphold our tradition of quality and proven results. As part of the new product development process, the Evolution has passed extensive design reviews as well as performance, endurance and sound testing requirements.
Applications 0
Auto body & tire shopsWoodworking facilitiesAgriculture General IndustrialDry cleaning
Design Advantages 0
Competitive Advantages & Customer BenefitsIntegral cylinder and head eliminating the possibility of blown head gaskets for leak-free, trouble-free operation.Balanced aluminum alloy first stage piston(s) are weight matched to the cast iron second-stage piston(s) for proper balance and minimized vibration. Unique domed piston design for maximum air delivery and efficiency.Lightweight, high-density, die-cast aluminum alloy connecting rods for minimal reciprocating weight. Precision-bored crankpin bearing and piston pin needle bearing are used to properly distribute bearing loads for longer bearing life than bushings.Industrial grade, reliable, high-flow, low lift disc-type valves are made of corrosion resistant Swedish steel to ensure years of trouble free operation.Tapered roller-type main bearings, providing full contact and support of the crankshaft, ensuring compressor durability and long-life.
Financing Approve Payments
Finance with Approve Payments
Optional Accessories 0
Moisture SeparatorDual ControlHigh Temperature Shut DownElectric Tank DrainTank Vibration Isolators
Quality Accessories 0
Competitive Advantages & Customer BenefitsDual cooling fans for cooler operation and longer life.Oil site gauge for ease of monitoring and service.Integrated heavy-duty air cooled aftercooler for up to 65% moisture removal.Filter maintenance indicator provides user-friendly monitoring. The graduated indicator monitors the compressor air filter. The position indicator progressively fills the window as air filter restriction increases and indicates the need for a filter change.Industrial grade compressor incorporates unique features including gasket-less cylinder/head design, stainless steel valve disks and tapered roller main bearings for superior dependability.Innovative belt tensioning system for easy service.Superior 24-hour service support and genuine replacement parts.Incredible Five-Year warranty.
Specifications Delivery At 175 Psi Rating
16.8 cfm
Specifications Displacement At 175 Psi Rating
21.3 cfm
Specifications Height
53 1/2 in
Specifications Length
67 in
Specifications Note For 175 Psi Rating
Units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC2.
Specifications Power
5 hp
Specifications Pump Model
RP15B
Specifications Shipping Weight
733 lb
Specifications Sound Level
67 dBA
Specifications Speed At 175 Psi Rating
734 rpm
Specifications Tank Capacity
80 gal
Specifications Width
31-1/2 in
Standard Features 0
Magnetic starter for thermal overload protectionManual tank drainStandard start/stop controlLow Oil Level ShutdownSound attenuating enclosure for low noise operationFront and back panels can be easily removed for fast and easy service accessBall valve on crankcase drain for easy maintenance of lubricantAir intake pre-filterPackage easily fits through a standard 36" door80/20 duty cycleMulti-finned cylinders for cooler operating temperatures resulting in long life and consistent performance.Two compression rings and one oil control ring to ensure low oil carry-over and provide efficient air delivery.Large-diameter finned tubing with the greatest cooling effect between stages for maximum compressor efficiency.Pressure relief valves located in inter-stage intercooler and discharge line for safe compressor operation.Precision balanced flywheel with cast fan blades for optimum compressor cooling and longer life.Removable manifolds for easy serviceability.Balanced rugged ductile iron crankshaft with large diameter throws for minimum bearing loads and counterweights to minimize vibration.Rugged cast iron oil reservoir with convenient sight gauge glass, corner oil fill boss and large oil drain for user-friendly serviceability.A pressure switch allows the compressor to start unloaded every time. This ensures the lowest amount of starting torque is required by the electric motor.
Which Compressor Is Right For Me 0
When purchasing an air compressor, many people often ask:"Is a rotary screw or reciprocating compressor right for me?"Today, the choice of air compressors is abundant. A number of factors determine the answer to this question, including the operating requirements, application, and budget.Ideal for constant-volume applications, rotary screw compressors are used extensively in applications above 30 horsepower and are often limited to a maximum air pressure of 150 psig. Rotary screw compressors typically have a higher initial cost than reciprocating compressors and require costly maintenance programs. Common advantages include a low noise level, low vibration, and 100% duty cycle.Reciprocating (piston) air compressors are widely considered as 'work-horse' compressors. They may be seen in the corner of the garage, in auto body and tire shops, woodworking facilities, hospitals, construction sites, amusement parks, and industrial facilities. Industrial reciprocating compressors are able to operate in a severe duty environment, have lower initial costs, lower maintenance costs, and are ideal for intermittent duty operation. They save energy in no-load conditions and operate efficiently at partial loads, which results in a higher overall efficiency for many diverse applications. Piston compressors are more forgiving than rotaries and normally operate more dependably in less than ideal conditions.Historically, it was not possible to provide the benefits of a reciprocating compressor in a low noise application. For this reason, rotary screw compressors have been misapplied in intermittent duty applications, resulting in frequent downtime, inefficient operation, problems with condensate, and higher maintenance costs.
