Graphite E-Beam Liner 15 cm³ RDM-EB13 Series
Graphite E-Beam Liner 15 cm³ RDM-EB13 Series
SKU:RDM-0fe64c
Premium Graphite E-Beam Liner for precise electron beam applications. Custom sizes, volume discounts available.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Graphite E-Beam Liner 15 cm³ RDM-EB13 Series
$49.99
Quantity: 1
Claim Your Seller Account
Graphite E-Beam Liner 15 cm³ RDM-EB13 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

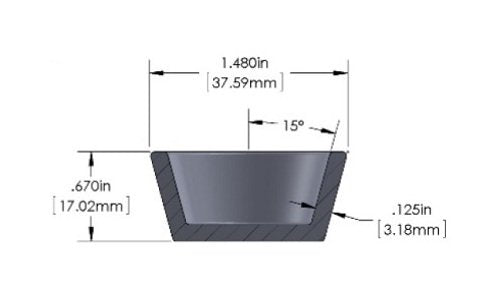

The Graphite E-Beam Liner 15 cm³ from the RDM-EB13 Series is a high-quality crucible container designed for precise electron beam applications. Crafted from graphite with a 15 cm³ volume capacity, this liner boasts a wall thickness of 0.125 inches, ensuring durability and optimal performance. With a 15-degree angle and dimensions of 1.480'' width and 0.670'' height, this liner offers superior compatibility with various systems. Custom sizes are available upon request, and volume discounts make it ideal for institutional users seeking reliable materials for electron beam processes.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.670 in | 17.02 mm
Specifications Material
Graphite
Specifications Size
15 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.480 in | 37.59 mm
