Graphite E-Beam Liner, 40 cm³ Size, RDM-EB6 Series
Graphite E-Beam Liner, 40 cm³ Size, RDM-EB6 Series
SKU:RDM-e30a8f
High-quality Graphite E-Beam Liner for reliable e-beam applications in 40 cm³ size. Customizable, volume discounts available.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Graphite E-Beam Liner, 40 cm³ Size, RDM-EB6 Series
$59.99
Quantity: 1
Claim Your Seller Account
Graphite E-Beam Liner, 40 cm³ Size, RDM-EB6 Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Graphite E-Beam Liner in 40 cm³ size from the RDM-EB6 Series by R. D. Mathis Company is crafted for precision and durability. With a crucible container design, a 15º angle, and 0.125" wall thickness, this liner ensures optimal performance in e-beam applications. Made of high-quality graphite, it meets stringent industry standards for reliability and efficiency. Custom sizes available upon request, with volume discounts for bulk orders.

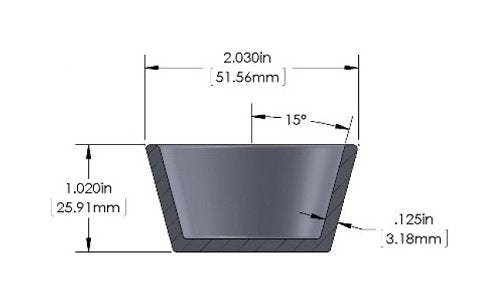

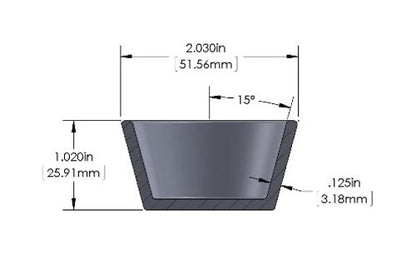

Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
1.020 in | 25.91 mm
Specifications Material
Graphite
Specifications Size
40 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
2.030 in | 51.56 mm
