Graphite E-Beam Liner with 4 Pockets - 25 cm³ Size
Graphite E-Beam Liner with 4 Pockets - 25 cm³ Size
SKU:RDM-a5e08e
RDM-EB16 Graphite E-Beam Liner - Precise containment for E-Beam processes, customizable sizes, and reliable performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Graphite E-Beam Liner with 4 Pockets - 25 cm³ Size
$59.99
Quantity: 1
Claim Your Seller Account
Graphite E-Beam Liner with 4 Pockets - 25 cm³ Size
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

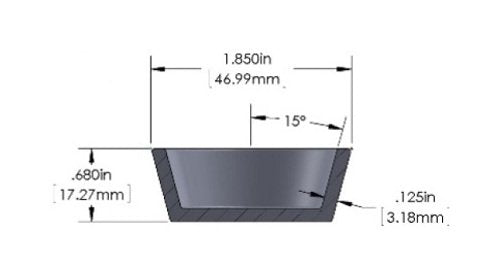

The RDM-EB16 Series Graphite E-Beam Liner with 4 Pockets in a 25 cm³ size offers precise containment for E-Beam processes. Crafted by RDM with a 15-degree angle, 0.125-inch wall thickness, and custom sizing options, it ensures reliable performance. Ideal for integration into various systems, it meets stringent industry standards and can be tailored for volume orders.
Product Specifications
Specifications Angle
15 º
Specifications Container Liner Type
Crucible
Specifications Height
0.680 in | 17.27 mm
Specifications Material
Graphite
Specifications Number Of Pockets
4
Specifications Size
25 cm³
Specifications Wall Thickness
0.125 in | 3.18 mm
Specifications Width
1.850 in | 46.99 mm
