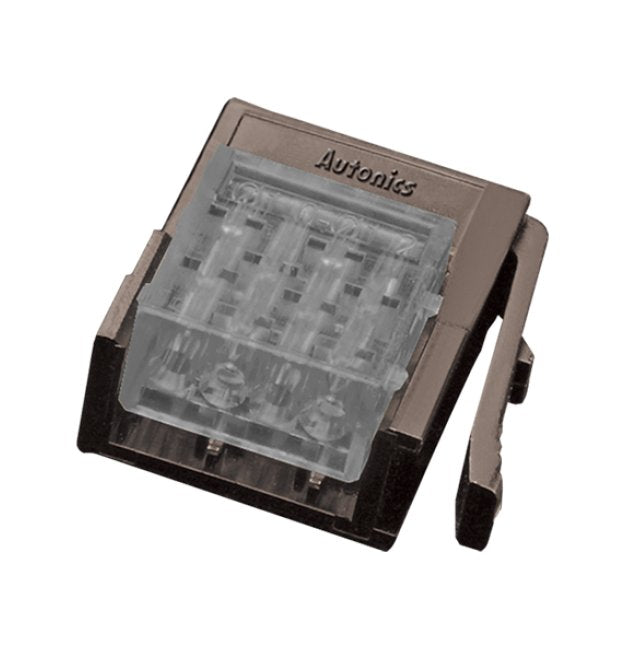

Gray 4-Pin Wire Mount Plug Connector - 22-20 AWG
Gray 4-Pin Wire Mount Plug Connector - 22-20 AWG
SKU:PRO-08e694
Enhance connectivity with our reliable Gray 4-Pin Wire Mount Plug Connector - perfect for secure and efficient electrical connections.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Gray 4-Pin Wire Mount Plug Connector - 22-20 AWG
$2.10
Quantity: 1
Claim Your Seller Account
Gray 4-Pin Wire Mount Plug Connector - 22-20 AWG
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity with our Gray 4-Pin Wire Mount Plug Connector designed for reliability and ease of use. Made with C5210 gold-plated terminals and sturdy Polycarbonate/ABS materials, this sensor connector ensures stable performance. With a maximum voltage of ~250V and a rated current of 3.0A, it is ideal for various applications requiring a secure connection. Suitable for 22-20 AWG wires with a cross-sectional area of 0.32 to 0.5 mm², this connector offers precise and efficient electrical connections, meeting the highest industry standards.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Gray
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Gray
Specifications Cover Diameter
1.6 to 2.0 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.32 to 0.5 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.32 to 0.5 mm²
Specifications Wire Size
22-20 AWG
