Gray NAB HD Wiring Duct - 1" x 3"
Gray NAB HD Wiring Duct - 1" x 3"
SKU:NOR-2561ee
Versatile Gray NAB HD Wiring Duct with customizable features, secure wire retention, and easy installation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Gray NAB HD Wiring Duct - 1" x 3"
$29.99
Quantity: 1
Claim Your Seller Account
Gray NAB HD Wiring Duct - 1" x 3"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

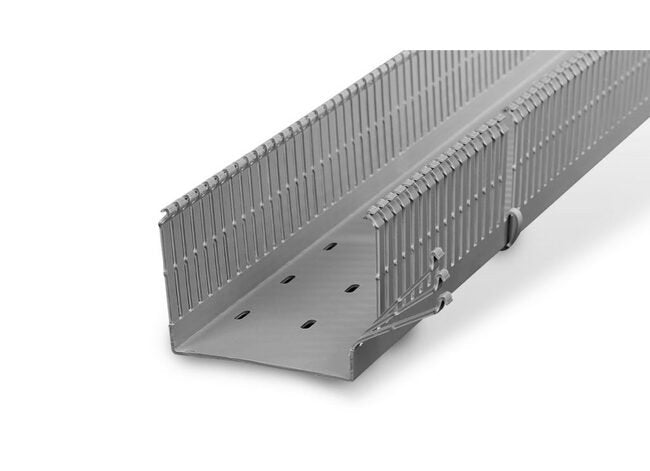

The Gray North American Base (NAB) Narrow Finger High Density (HD) Wiring Duct is a versatile solution that conforms to North American base wire duct mounting hole configurations. This duct, with a nominal width of 1 inch and a nominal height of 3 inches, offers customizable features such as length, fingers, hole patterns, and adhesive backing. Its design includes restricted slot openings that securely retain wires, two break lines for easy finger removal, and burr-free edges to prevent wire damage. The duct is also cost-efficient, reusable, and designed with recessed mounting holes for quick component installation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Advantages Advantages
Customizable: length, fingers, hole patterns, and adhesive backing!Expandable and retrofittableCost, resource, and time-efficientReusableRestricted slot opening retains wire betterTwo pre-determined break lines for easily removing finger or finger basesBurr-free edges wonât damage wiresRecessed mounting holes for fast component mounting
Specifications Actual Dimension E
0.16 in
Specifications Actual Dimension F
0.24 in
Specifications Actual Dimension H
3.15 in
Specifications Actual Dimension W
1.00 in
Specifications Color
Gray
Specifications Nominal Height
3 in | 80 mm
Specifications Nominal Width
1 in | 25 mm
Specifications Standard Carton Quantity
24
