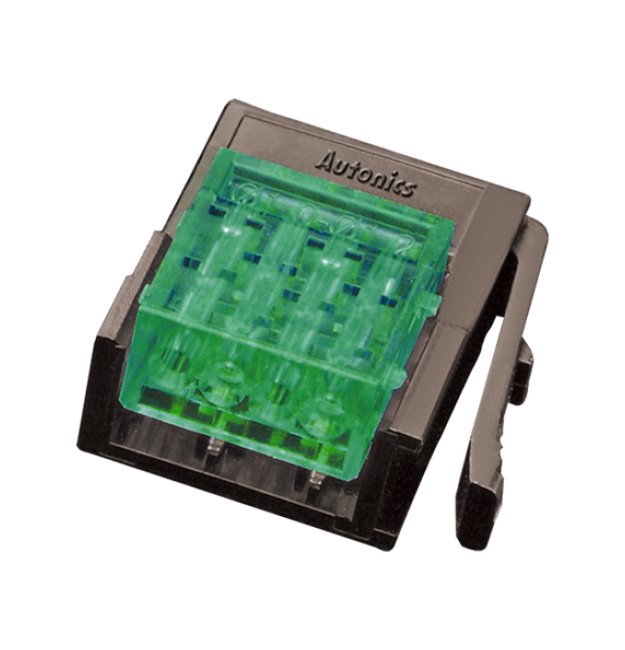

Green 4-Pin Wire Mount Plug Connector
Green 4-Pin Wire Mount Plug Connector
SKU:PRO-0af079
Enhance connectivity with our Green 4-Pin Wire Mount Plug Connector, featuring a maximum voltage of ~250 V, durable Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) body, and gold-coated terminals.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Green 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Claim Your Seller Account
Green 4-Pin Wire Mount Plug Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your connectivity solutions with our Green 4-Pin Wire Mount Plug Connector. This sensor connector offers a maximum voltage of ~250 V, a maximum rated current of 3.0 A, and a terminal material of C5210 with a gold coating for enhanced conductivity. Its durable Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) body ensures long-term reliability, while meeting UL94V-0 standards. Designed for AWG20 to 22 wires with a cross-sectional area of 0.32 to 0.5 mm², this connector provides secure and efficient connections for your electrical needs.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Green
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Green
Specifications Cover Diameter
1.0 to 1.2 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.32 to 0.5 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.32 to 0.5 mm²
Specifications Wire Size
22-20 AWG
