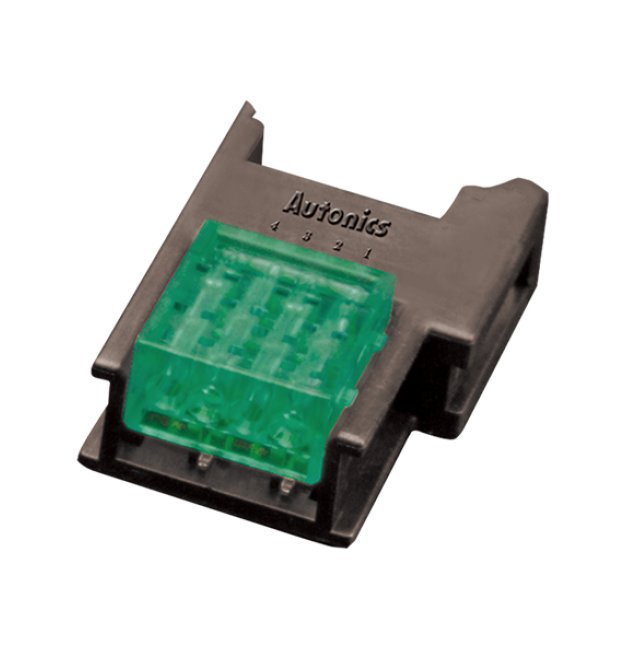

Green 4-Pin Wire Mount Socket Connector
Green 4-Pin Wire Mount Socket Connector
SKU:PRO-cfc308
Reliable Green 4-Pin Wire Mount Socket Connector for secure connections in AWG 20-22 wires. Maximum voltage of ~250V & current rating of 3.0A. Meet industry standards.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Green 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Claim Your Seller Account
Green 4-Pin Wire Mount Socket Connector
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your connectivity with our Green 4-Pin Wire Mount Socket Connector ideal for AWG 20-22 wires with a diameter range of 0.32-0.5mm. Made of high-quality Polycarbonate/Acrylonitrile Butadiene Styrene with Gold-plated terminals, this connector ensures reliable and secure connections. With a maximum voltage of ~250V and a maximum current rating of 3.0A, it meets stringent industry standards for Sensor Connectors.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Green
Specifications Connector Type
Wire Mount Socket
Specifications Cover Color
Green
Specifications Cover Diameter
1.0 to 1.2 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.32 to 0.5 mm²
Specifications Number Of Pins
4
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.32 to 0.5 mm²
Specifications Wire Size
22-20 AWG
