Green Heavy Duty Inflation Hose Assembly with Shut-Off Valve

Green Heavy Duty Inflation Hose Assembly with Shut-Off Valve

HIG-e50cdc

Durable 3/8'' x 32' Green Inflation Hose Assembly with Safety Features - Ideal for High Pressure Tasks

$49.99
$49.99
Sale

Initiate Order

Green Heavy Duty Inflation Hose Assembly with Shut-Off Valve

Green Heavy Duty Inflation Hose Assembly with Shut-Off Valve

$49.99

Quantity: 1

Claim Your Seller Account

Green Heavy Duty Inflation Hose Assembly with Shut-Off Valve

Green Heavy Duty Inflation Hose Assembly with Shut-Off Valve

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Green Heavy Duty Inflation Hose Assembly by Petersen® is designed for high-pressure applications, featuring a 3/8'' ID and a 32 ft length for versatile use. This all-weather hose comes with a shut-off and pressure relief valve, ensuring safety and control during inflation tasks. The green color enhances visibility, while the 1/4 Inch Safety Coupler and Nipple connections offer secure fittings. Ideal for 161-5 Series High Pressure Heavy Duty Bags, this hose assembly is a reliable choice for industrial and institutional settings.

Product Specifications

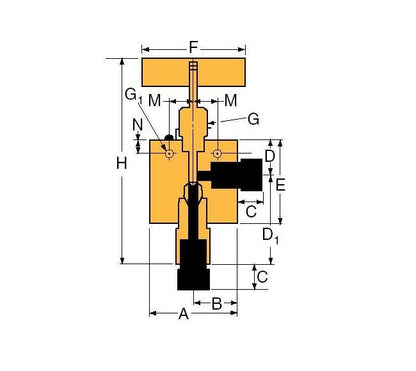

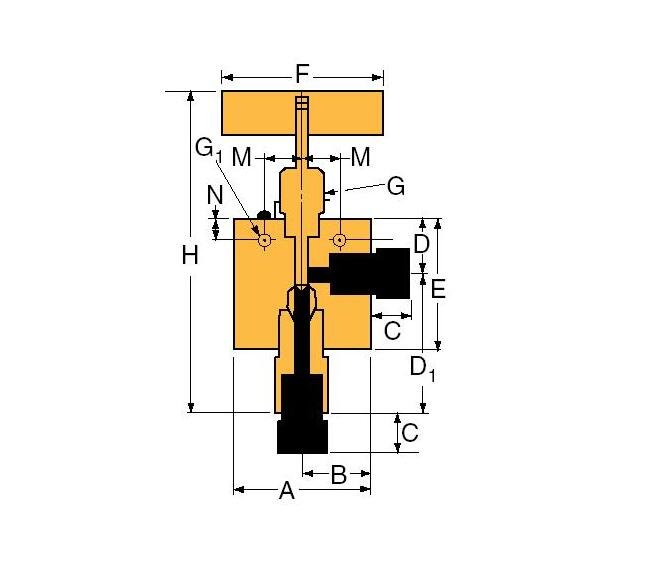

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
SW250
Specifications C Length
0.38 in | 9.65 mm
Specifications D1 Height
1.88 in | 47.75 mm
Specifications D Height
1.19 in | 30.23 mm
Specifications E Height
2.25 in | 57.15 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
5.75 in | 146.05 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.187 in | 4.75 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.65
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance Valve Maintenance
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: RSW4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options Valve Options
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG standard valve with Teflon glass packing to 600°F (316°C).GY standard valve with graphite braided yarn packing to 650°F (343°C).† Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
