Green Pin® Bow Shackle with Safety Bolt - Hot Dip Galvanized, WLL 13.5T

Name: Green Pin® Bow Shackle with Safety Bolt - Hot Dip Galvanized, WLL 13.5T
Brand: Lexco Cable Manufacturing
SKU: WIR-3fa238
Price: 79.99 USD
Availability: OutOfStock

SKU:WIR-3fa238

Green Pin® Bow Shackle: Hot-Dip Galvanized, WLL 13.5T. Meets US Fed. Spec. RR-C-271 standards.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

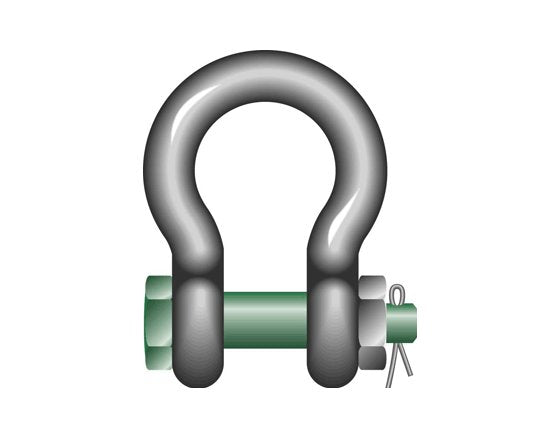

The Green Pin® Standard Bow Shackle with Safety Bolt is designed to meet the performance requirements of US Fed. Spec. RR-C-271. This shackle is hot-dipped galvanized for enhanced durability and corrosion resistance. Made in Holland, it features a Working Load Limit (WLL) of 13.5 tons, making it ideal for lifting or towing applications. With precise dimensions and a safety bolt, this shackle ensures secure connections in demanding environments.

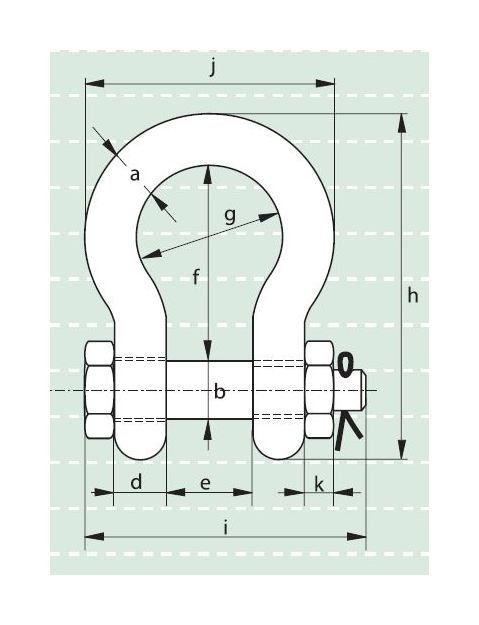

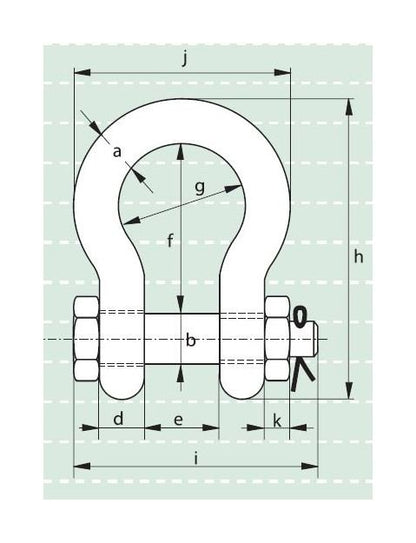

Product Specifications

Specifications Diam Bow A Inch

1-3/8

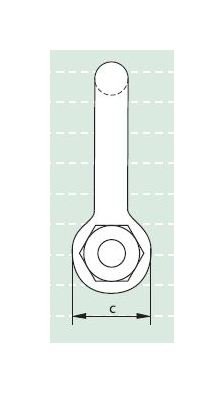

Specifications Diam Eye C Inch

3-5/32

Specifications Diam Pin B Inch

1-1/2

Specifications Length Bolt I Inch

7-25/32

Specifications Length H Inch

9-7/19

Specifications Length Inside F Inch

5-1/4

Specifications Thickness Nut K Inch

1-11/32

Specifications Weight Each Lbs

14.42

Specifications Width Bow G Inch

3-5/8

Specifications Width Eye D Inch

1-3/8

Specifications Width Inside E Inch

2-1/4

Specifications Width J Inch

6-23/32

Specifications Wll Tons

13.5
