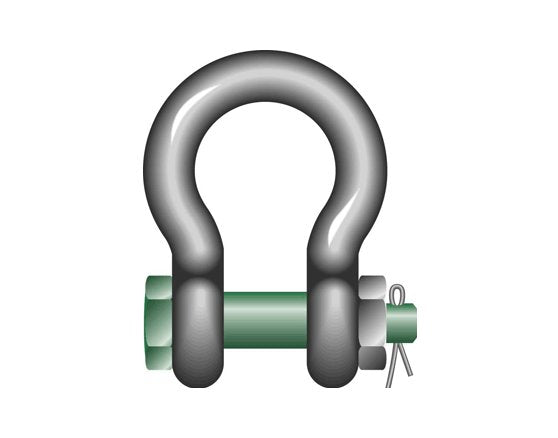

Green Pin® Standard Bow Shackles with Safety Bolt - Hot Dip Galvanized

Name: Green Pin® Standard Bow Shackles with Safety Bolt - Hot Dip Galvanized
Brand: Lexco Cable Manufacturing
SKU: WIR-cc41cd
Price: 289.99 USD
Availability: OutOfStock

SKU:WIR-cc41cd

Meet US Federal Spec. RR-C-271 with Green Pin® Standard Bow Shackles. Hot-dipped galvanized for ultimate durability.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® Standard Bow Shackles with Safety Bolt are engineered to meet the rigorous performance requirements of US Federal Spec. RR-C-271 and adhere to EN 13889 standards. Crafted with hot-dipped galvanized finish for enhanced durability, these shackles are manufactured in Holland to ensure top-notch quality and reliability. Ideal for lifting or towing applications, these shackles offer a Working Load Limit (WLL) of 85 tons, making them a trusted choice for industrial and institutional use.

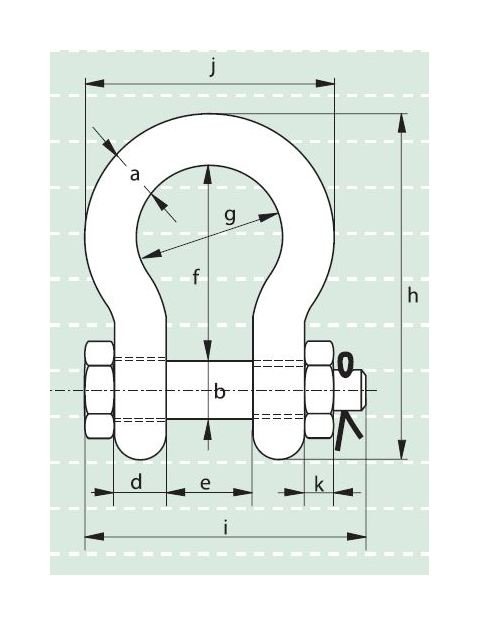

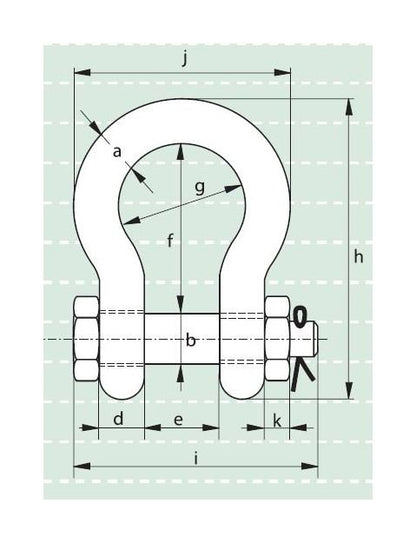

Product Specifications

Specifications Diam Bow A Inch

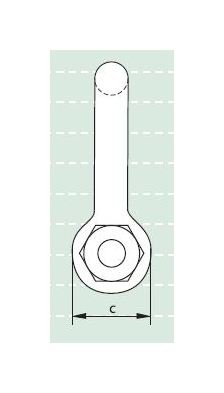

Specifications Diam Eye C Inch

6-7/16

Specifications Diam Pin B Inch

3-1/4

Specifications Length Bolt I Inch

14-25/32

Specifications Length H Inch

21-29/32

Specifications Length Inside F Inch

12-15/16

Specifications Thickness Nut K Inch

1-19/32

Specifications Weight Each Lbs

136.69

Specifications Width Bow G Inch

7-1/2

Specifications Width Eye D Inch

2-15/16

Specifications Width Inside E Inch

Specifications Width J Inch

Specifications Wll Tons

Green Pin® Standard Bow Shackles with Safety Bolt - Hot Dip Galvanized
