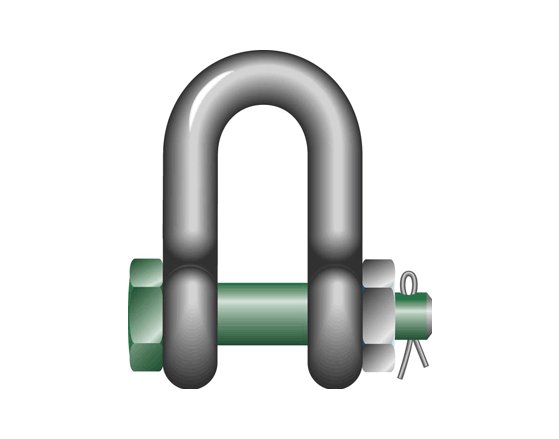

Green Pin® Standard Shackles Dee Shackles with Safety Bolt - Hot Dip Galvanized

Name: Green Pin® Standard Shackles Dee Shackles with Safety Bolt - Hot Dip Galvanized
Brand: Lexco Cable Manufacturing
SKU: WIR-3780de
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-3780de

Trust Green Pin® for premium quality Standard Shackles with Safety Bolt. Hot Dip Galvanized, 2-ton WLL, meets US Fed. Spec. RR-C-271 & EN 13889.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® Standard Shackles Dee Shackles with Safety Bolt are engineered to meet the performance requirements of US Federal Specification RR-C-271 and conform to EN 13889 standards. Made in Holland, these shackles feature a hot-dipped galvanized finish for enhanced durability. Ideal for lifting or towing applications, these shackles offer a Working Load Limit (WLL) of 2 tons and precise dimensions to ensure secure connections. Trust in the quality and reliability of Green Pin® for your wire rope hardware needs.

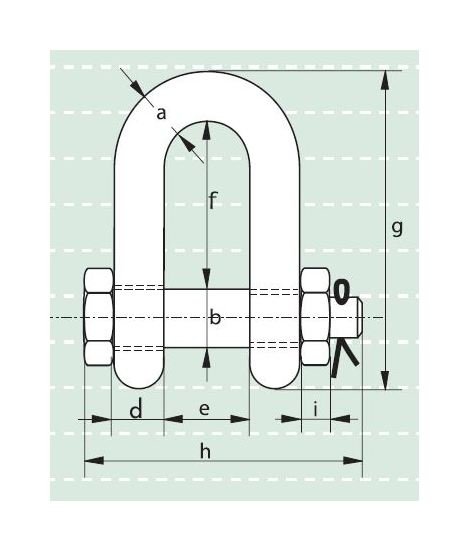

Product Specifications

Specifications Diam Bow A Inch

1/2

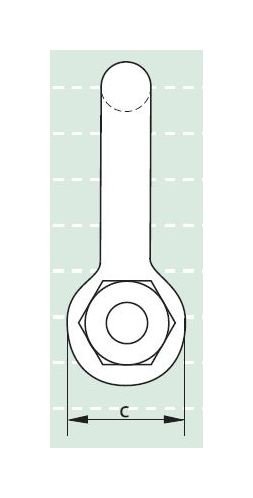

Specifications Diam Eye C Inch

1-11/32

Specifications Diam Pin B Inch

5/8

Specifications Length Bolt H Inch

3-9/32

Specifications Length G

3-11/32

Specifications Length Inside F Inch

1-23/32

Specifications Thickness Nut I Inch

17/32

Specifications Weight Each Lbs

0.85

Specifications Width Eye D Inch

17/32

Specifications Width Inside E Inch

7/8

Specifications Wll Tons
