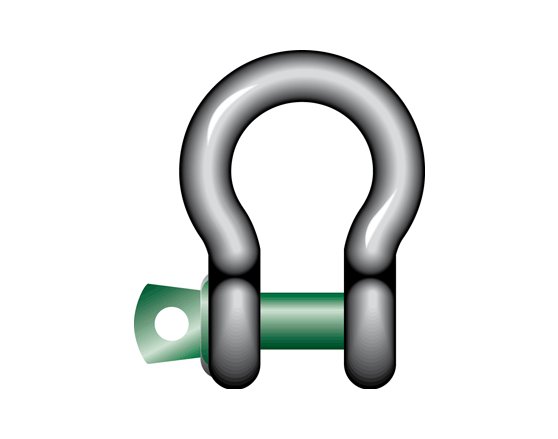

Green Pin® 12 Ton Standard Bow Shackles with Screw Collar Pin
Green Pin® 12 Ton Standard Bow Shackles with Screw Collar Pin
SKU:WIR-aa265f
High-quality Green Pin® 12 Ton Bow Shackles for heavy lifting, towing, and secure wire rope connections.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Green Pin® 12 Ton Standard Bow Shackles with Screw Collar Pin
$99.99
Quantity: 1
Claim Your Seller Account
Green Pin® 12 Ton Standard Bow Shackles with Screw Collar Pin
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Green Pin® 12 Ton Standard Bow Shackles with Screw Collar Pin are expertly crafted to meet the stringent performance requirements of US Federal Specification RR-C-271. Made in Holland and finished with hot-dip galvanization, these shackles are designed for heavy-duty lifting and towing applications. With a Working Load Limit of 12 tons, and precise dimensions for optimal functionality, these shackles ensure reliable and secure connections in wire rope loops.

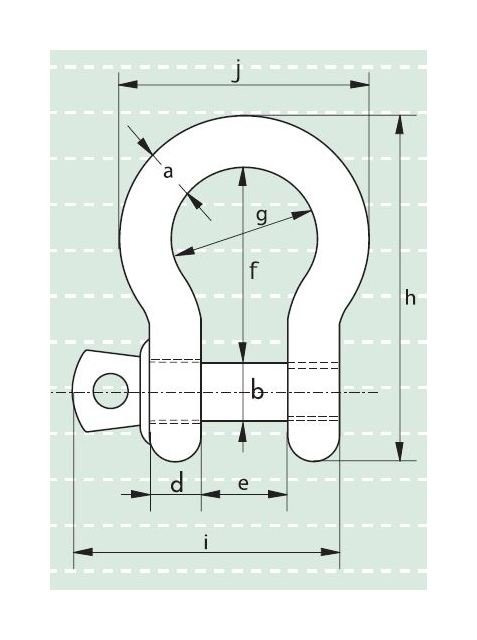

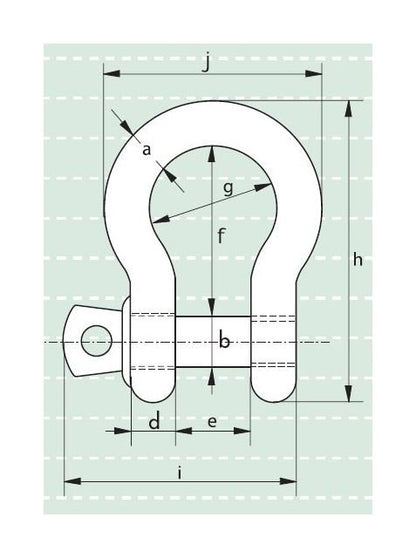

Product Specifications
Specifications Diam Bow A Inch
1-1/4

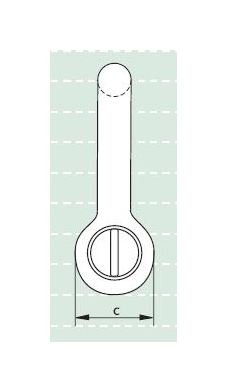

Specifications Diam Eye C Inch
2-29/32
Specifications Diam Pin B Inch
1-3/8
Specifications Length Bolt I Inch
6-29/32
Specifications Length H Inch
8-9/16
Specifications Length Inside F Inch
4-17/32
Specifications Weight Each Lbs
9.49
Specifications Width Bow G Inch
3-9/32
Specifications Width Eye D Inch
1-9/32
Specifications Width Inside E Inch
2
Specifications Width J Inch
6-1/32
Specifications Wll Tons
12
CAGE
0T9L4
NAICS
332999
PSC
5340
