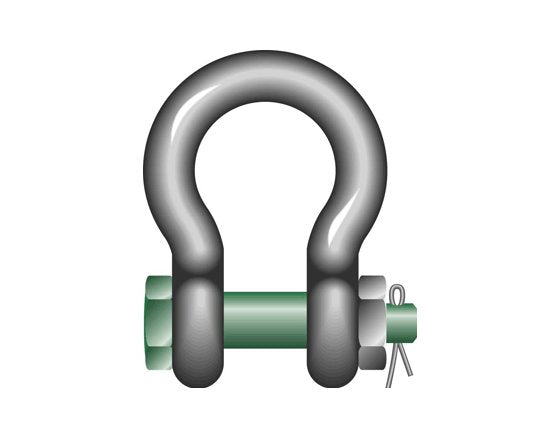

Green Pin® 2.5T Standard Bow Shackle with Safety Bolt

Green Pin® 2.5T Standard Bow Shackle with Safety Bolt

SKU:WIR-830cd3

High-performance Green Pin® bow shackle with safety bolt, EN 13889 & US Fed. Spec. RR-C-271 compliant, 55-ton WLL, hot-dipped galvanized finish

Regular price $249.99
Regular price Sale price $249.99
Sale

Initiate Order

Green Pin® 2.5T Standard Bow Shackle with Safety Bolt

Green Pin® 2.5T Standard Bow Shackle with Safety Bolt

$249.99

Quantity: 1

Claim Your Seller Account

Green Pin® 2.5T Standard Bow Shackle with Safety Bolt

Green Pin® 2.5T Standard Bow Shackle with Safety Bolt

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® Standard Bow Shackle with Safety Bolt is a high-performance shackle that meets EN 13889 and US Fed. Spec. RR-C-271 standards. Designed for lifting and towing applications, this shackle features a hot-dipped galvanized finish for durability. With a Working Load Limit (WLL) of 55 tons and precise dimensions, including a 2-1/2" bow diameter, 2-3/4" pin diameter, and 5-3/4" eye diameter, this shackle ensures safe and reliable operation. Made in Holland, this shackle is a top choice for industrial and government users.

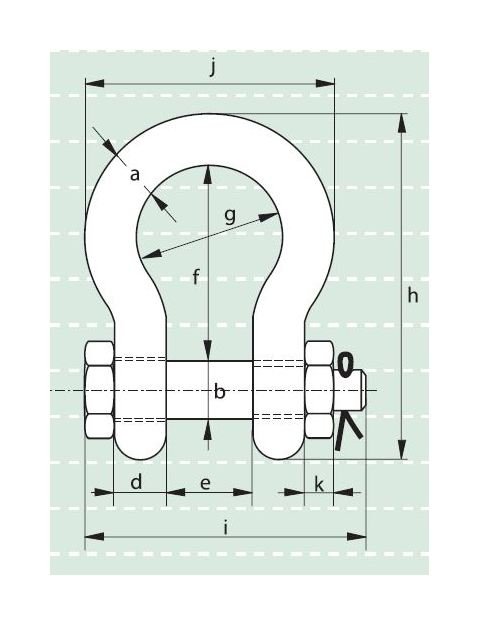

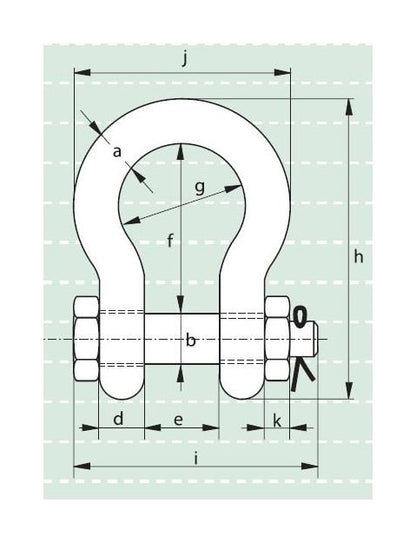

Product Specifications

Specifications Diam Bow A Inch
2-1/2

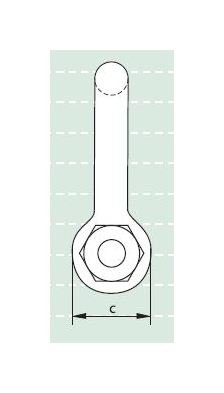

Specifications Diam Eye C Inch
5-3/4
Specifications Diam Pin B Inch
2-3/4
Specifications Length Bolt I Inch
13
Specifications Length H Inch
18-1/4
Specifications Length Inside F Inch
10-1/4
Specifications Thickness Nut K Inch
1-5/16
Specifications Weight Each Lbs
87.27
Specifications Width Bow G Inch
7-3/32
Specifications Width Eye D Inch
2-9/16
Specifications Width Inside E Inch
4-1/8
Specifications Width J Inch
12-15/16
Specifications Wll Tons
55
CAGE
0T9L4
NAICS
332722
PSC
5306
