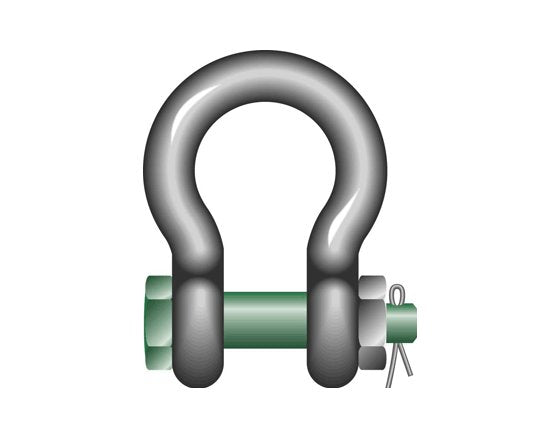

Green Pin® 35-Ton Bow Shackle with Safety Bolt
Green Pin® 35-Ton Bow Shackle with Safety Bolt
SKU:WIR-0144e8
Heavy-duty 35-ton bow shackle with safety bolt, hot-dipped galvanized, meets US Fed. Spec. RR-C-271 & EN 13889.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Green Pin® 35-Ton Bow Shackle with Safety Bolt
$149.99
Quantity: 1
Claim Your Seller Account
Green Pin® 35-Ton Bow Shackle with Safety Bolt
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Green Pin® 35-Ton Bow Shackle with Safety Bolt is engineered to meet the stringent performance requirements of US Federal Specification RR-C-271 and European Standard EN 13889. This heavy-duty shackle is hot-dipped galvanized for superior corrosion resistance, making it ideal for lifting and towing applications. Made in Holland, this Green Pin® shackle ensures reliable performance and durability in demanding environments.

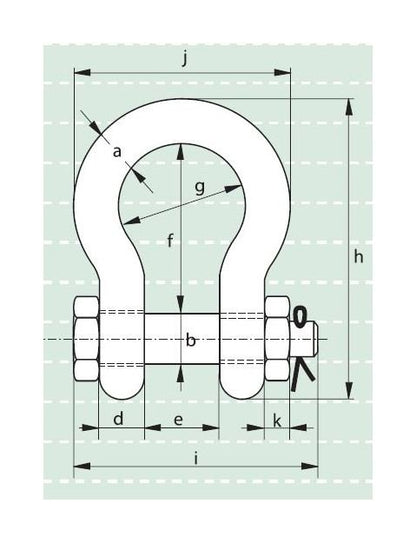

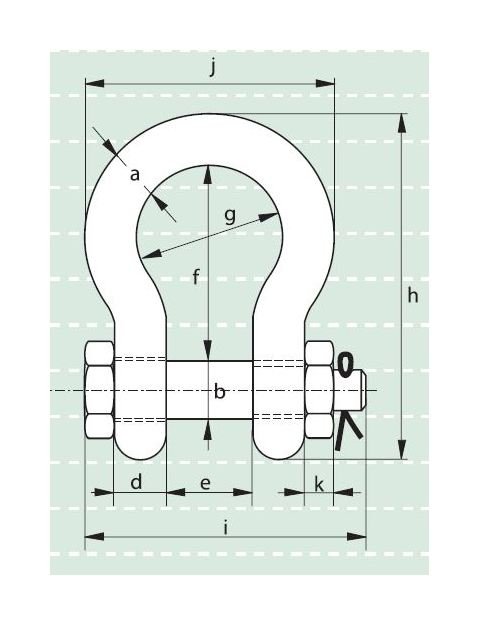

Product Specifications
Specifications Diam Bow A Inch
2

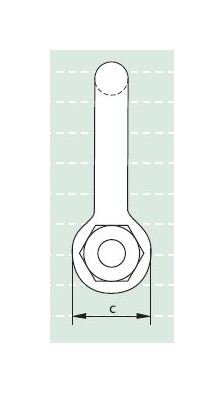

Specifications Diam Eye C Inch
4-11/32
Specifications Diam Pin B Inch
2-1/4
Specifications Length Bolt I Inch
10-5/8
Specifications Length H Inch
14-3/32
Specifications Length Inside F Inch
7-3/4
Specifications Thickness Nut K Inch
1-3/32
Specifications Weight Each Lbs
43.77
Specifications Width Bow G Inch
5-7/16
Specifications Width Eye D Inch
2-31/32
Specifications Width Inside E Inch
3-9/32
Specifications Width J Inch
9-13/16
Specifications Wll Tons
35
CAGE
0T9L4
NAICS
332722
PSC
5306
