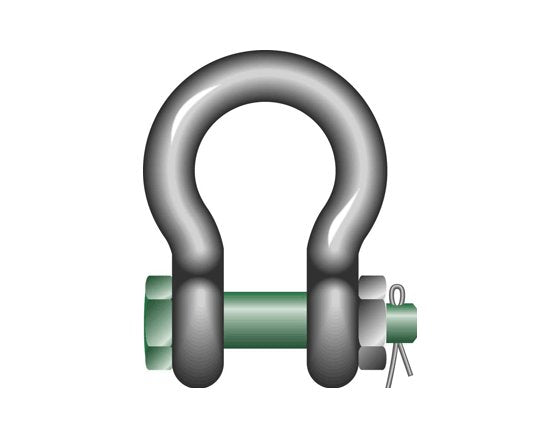

Green Pin® 42.5 Ton Standard Bow Shackle with Safety Bolt

Green Pin® 42.5 Ton Standard Bow Shackle with Safety Bolt

SKU:WIR-9313e5

Premium Green Pin® 42.5 Ton Bow Shackle for heavy lifting and towing applications. Meets US Fed. Spec. RR-C-271.

Regular price $299.99
Regular price Sale price $299.99
Sale

Initiate Order

Green Pin® 42.5 Ton Standard Bow Shackle with Safety Bolt

Green Pin® 42.5 Ton Standard Bow Shackle with Safety Bolt

$299.99

Quantity: 1

Claim Your Seller Account

Green Pin® 42.5 Ton Standard Bow Shackle with Safety Bolt

Green Pin® 42.5 Ton Standard Bow Shackle with Safety Bolt

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® 42.5 Ton Standard Bow Shackle with Safety Bolt is a reliable and durable shackle designed to meet the stringent performance requirements of US Federal Specification RR-C-271. Manufactured in Holland, this shackle is hot-dipped galvanized for enhanced corrosion resistance. With a Working Load Limit (WLL) of 42.5 tons, this shackle is ideal for heavy lifting and towing applications. Its precise dimensions and sturdy construction make it a trusted choice for industrial and institutional use.

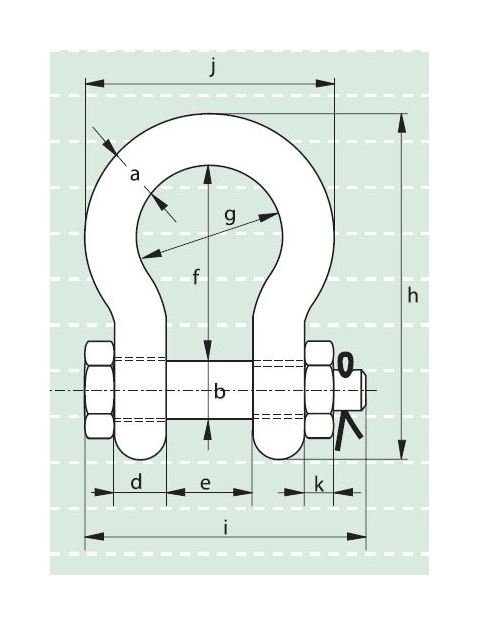

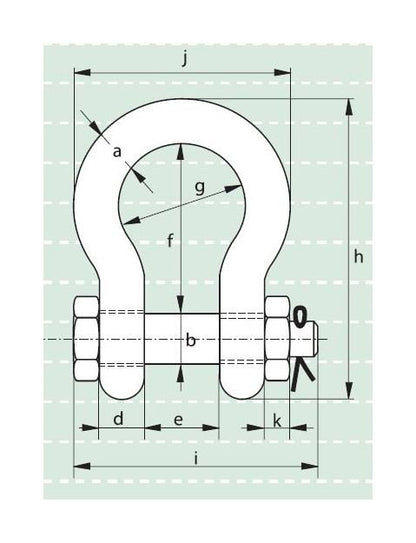

Product Specifications

Specifications Diam Bow A Inch
2-1/4

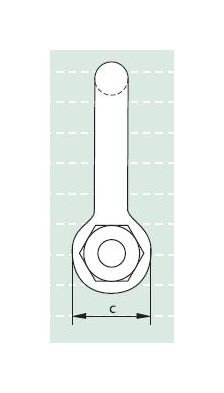

Specifications Diam Eye C Inch
5-9/32
Specifications Diam Pin B Inch
2-9/16
Specifications Length Bolt I Inch
11-7/8
Specifications Length H Inch
16-5/16
Specifications Length Inside F Inch
8-3/4
Specifications Thickness Nut K Inch
1-3/16
Specifications Weight Each Lbs
62.46
Specifications Width Bow G Inch
6-9/32
Specifications Width Eye D Inch
2-1/4
Specifications Width Inside E Inch
3-3/4
Specifications Width J Inch
11-5/16
Specifications Wll Tons
42.5
CAGE
0T9L4
NAICS
332722
PSC
5306
