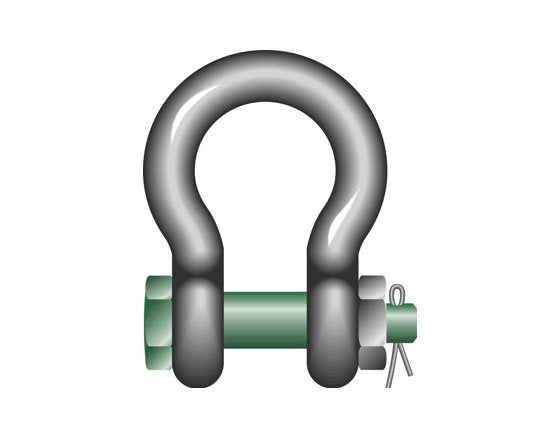

Green Pin® 8.5T Standard Bow Shackles with Safety Bolt

Green Pin® 8.5T Standard Bow Shackles with Safety Bolt

SKU:WIR-4a7874

Green Pin® 8.5T Bow Shackles: High-performance, hot-dipped galvanized shackles for lifting and towing applications.

Regular price $55.99
Regular price Sale price $55.99
Sale

Initiate Order

Green Pin® 8.5T Standard Bow Shackles with Safety Bolt

Green Pin® 8.5T Standard Bow Shackles with Safety Bolt

$55.99

Quantity: 1

Claim Your Seller Account

Green Pin® 8.5T Standard Bow Shackles with Safety Bolt

Green Pin® 8.5T Standard Bow Shackles with Safety Bolt

$55.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® 8.5T Standard Bow Shackles with Safety Bolt are designed to meet the high-performance requirements of US Federal Specification RR-C-271. With a Working Load Limit (WLL) of 8.5 tons, these shackles are ideal for lifting and towing applications. Manufactured in Holland, these shackles feature a hot-dipped galvanized finish for enhanced durability and corrosion resistance. The shackles are meticulously crafted with precise dimensions and a safety bolt for secure usage.

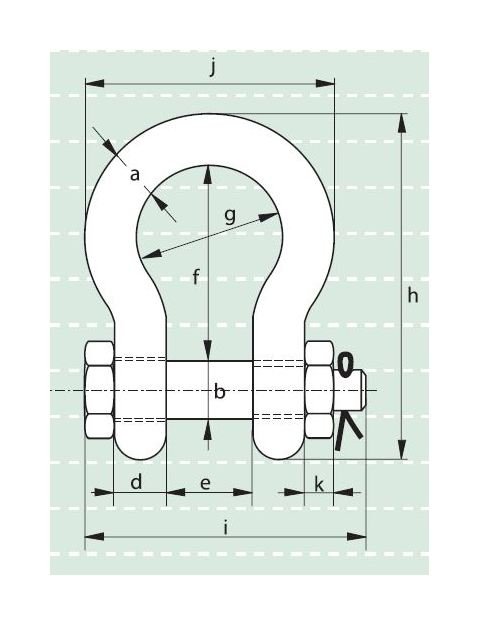

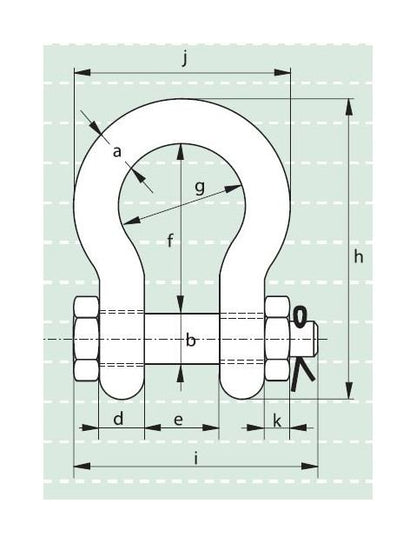

Product Specifications

Specifications Diam Bow A Inch
1

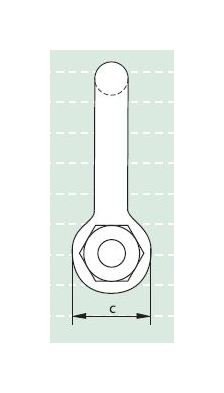

Specifications Diam Eye C Inch
2-11/32
Specifications Diam Pin B Inch
1-1/8
Specifications Length Bolt I Inch
5-15/16
Specifications Length H Inch
6-29/32
Specifications Length Inside F Inch
3-3/4
Specifications Thickness Nut K Inch
1
Specifications Weight Each Lbs
5.69
Specifications Width Bow G Inch
2-11/16
Specifications Width Eye D Inch
1
Specifications Width Inside E Inch
1-23/32
Specifications Width J Inch
4-7/8
Specifications Wll Tons
8.5
CAGE
0T9L4
NAICS
332722
PSC
5306
