Green Pin® Bow Shackle with Safety Bolt

Green Pin® Bow Shackle with Safety Bolt

SKU:WIR-cde28f

Meet US Federal Spec RR-C-271 with the Green Pin® Bow Shackle - Holland-made, hot-dip galvanized for secure lifting and towing.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Green Pin® Bow Shackle with Safety Bolt

Green Pin® Bow Shackle with Safety Bolt

$49.99

Quantity: 1

Claim Your Seller Account

Green Pin® Bow Shackle with Safety Bolt

Green Pin® Bow Shackle with Safety Bolt

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

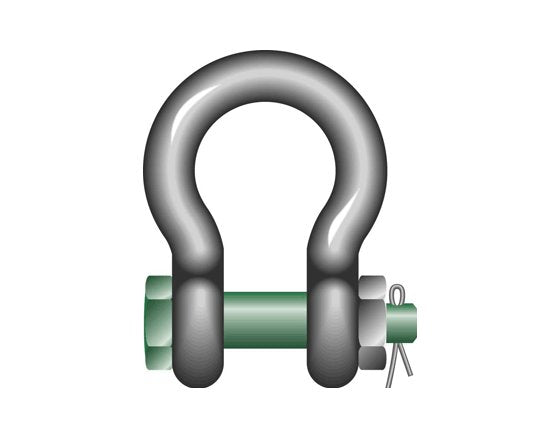

The Green Pin® Bow Shackle with Safety Bolt is a high-performance shackle that meets the stringent requirements of US Federal Specification RR-C-271 and is standard compliant with EN 13889. Manufactured in Holland, this hot-dipped galvanized shackle is designed for lifting and towing applications. With a Working Load Limit (WLL) of 4.75 tons and precise dimensions, this shackle ensures secure and reliable operations. The Green Pin® Bow Shackle with Safety Bolt is a vital component for wire rope loops, offering exceptional strength and durability.

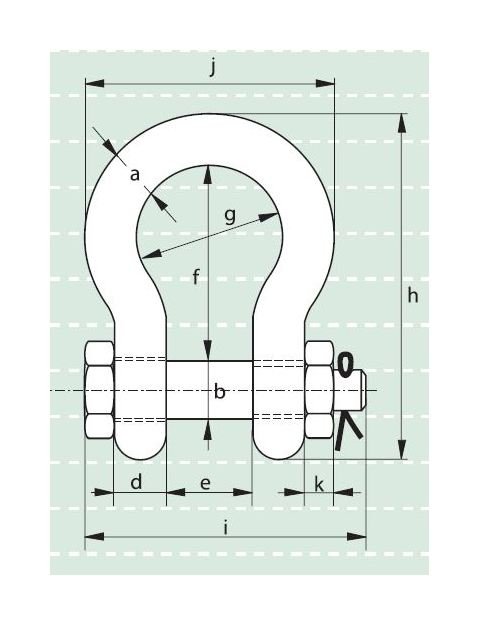

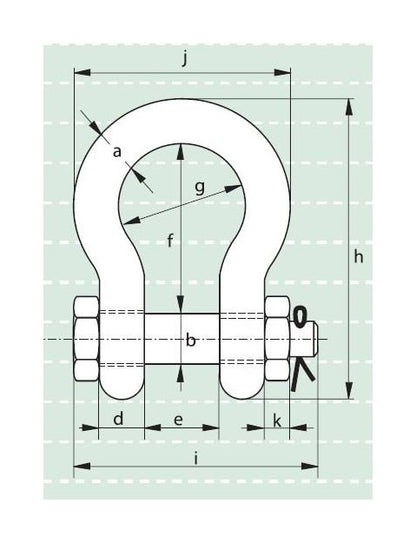

Product Specifications

Specifications Diam Bow A Inch
3/4

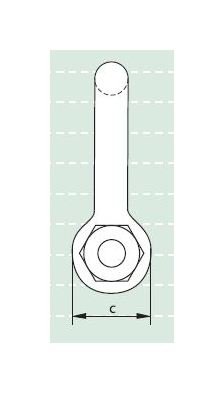

Specifications Diam Eye C Inch
1-7/8
Specifications Diam Pin B Inch
7/8
Specifications Length Bolt I Inch
4-17/32
Specifications Length H Inch
5-11/32
Specifications Length Inside F Inch
3
Specifications Thickness Nut K Inch
25/32
Specifications Weight Each Lbs
2.59
Specifications Width Bow G Inch
2
Specifications Width Eye D Inch
3/4
Specifications Width Inside E Inch
1-1/4
Specifications Width J Inch
3-23/32
Specifications Wll Tons
4.75
CAGE
0T9L4
NAICS
332722
PSC
5306
